Key Differences Between Vane and Gear Pumps
Explore the essential features of vane and gear pumps.
| Features | Vane Pumps | Gear Pumps |
|---|---|---|
| Operational Mechanism | Uses rotating vanes to move fluid. | Utilizes meshing gears for fluid movement. |
| Flow Rate | Provides smooth and consistent flow. | Delivers steady flow, even with thick fluids. |
| Pressure Range | Handles medium pressure levels effectively. | Capable of high pressure applications. |
| Fluid Compatibility | Best for thin and low viscosity fluids. | Ideal for thick and high viscosity fluids. |
| Maintenance Needs | Requires regular checks and part replacements. | Lower maintenance due to fewer moving parts. |
| Durability | Can wear out with dirty fluids. | More robust against wear and tear. |
| Cost Factors | Higher initial costs but efficient long-term. | Lower initial costs, simpler design. |
| Noise Levels | Operates quietly, suitable for noise-sensitive areas. | Generally quiet, but may have slight pulsations. |
You want the right pumps for your job. Vane Pumps work best with thin fluids and offer strong suction, while gear pumps handle thick fluids at slow speeds with ease. Each pump type has strengths in handling different fluids and wear. Your choice depends on what you need to move, how often you need to maintain your equipment, and the kind of performance you expect.
Key Takeaways
- Vane pumps work well with thin fluids. They run quietly and smoothly. These pumps are small and can start on their own. This makes them good for small spaces.
- Gear pumps are best for thick fluids. They can keep high pressure. Their simple design makes them strong for hard work.
- Pick a pump by looking at the fluid’s thickness. Think about how much pressure you need. Also, think about how often you want to do maintenance. Check what your job needs to choose the right pump.
- Both pumps need regular care. Vane pumps need more checks. Gear pumps are usually easier to take care of.
- Talk to experts like NTGD to help you choose. Make sure you balance how well it works, the price, and how much care it needs.
Quick Answer: Vane Pumps or Gear Pumps?
Picking between vane pumps and gear pumps depends on what you need. Each pump has its own strong points. You should choose a pump that matches your fluid, pressure, and flow needs.
When to Use Vane Pumps
Vane pumps are good when you want steady flow and quiet work. They work best with fluids that are not too thick. These pumps do well with low or medium pressure. If you do not have much space, vane pumps are small and fit easily. Many companies use sliding vane pumps because their parts do not touch each other. This helps the pump last longer and keeps the flow steady as it gets older.
Here are some times when vane pumps are a great choice:
| Scenario | Advantage |
|---|---|
| Low to Medium Viscosity Fluids | Vane pumps work well with these fluids. |
| Consistent Flow Rates | Good for jobs that need steady flow. |
| Low to Medium Pressure Applications | Work well in these pressure ranges. |
| Quiet Operation | Useful where you want less noise. |
| Compact Design | Small size helps save space in many places. |
Tip: Vane pumps keep working well as they get older because the vanes move to fit as they wear down.
When to Use Gear Pumps
Gear pumps are best for moving thick fluids slowly. These pumps handle heavy liquids better than other pumps. Gear pumps are simple and strong, so they work well for tough jobs. They are good for moving oils, syrups, or other thick fluids. You can count on gear pumps to work well even in hard conditions.
If you want to compare both pumps, think about how thick your fluid is, what pressure you need, and how much noise you can handle. NTGD has both vane and gear pumps for your needs. You can ask NTGD for help picking the best pump for your job.
Vane Pumps: Overview
How Vane Pumps Work
Vane pumps have a special way to move fluids. Inside, a rotor spins and has vanes that slide in and out. The vanes always touch the inside wall of the pump. This makes small spaces that get bigger and smaller. When the space gets bigger, it pulls fluid in. When the space gets smaller, it pushes fluid out. Vane pumps are good for moving thin fluids. These pumps can start working by themselves. You do not need extra tools to get them going.
Note: Sliding vane pumps move fluids gently. This helps keep food and drinks safe from damage.
Key Features of Vane Pumps
Vane pumps are small and work in many ways. You can change how fast the pump moves fluid. This helps the pump fit many jobs. The table below shows what makes vane pumps different:
| Characteristic | Description |
|---|---|
| Self-Priming | Starts pumping without outside help |
| Compact Design | Fits into tight spaces |
| Variable Flow Rate | Lets you control how much fluid moves through the pump |
The parts of vane pumps can be made from metal, carbon, or plastic. This helps the pump last longer and work with many fluids. Good design makes the pump last longer by lowering friction.
Common Uses
Many businesses use vane pumps because they are reliable. They move fluids gently and do not break down easily. You will find them in:
- Cars, where they move hydraulic fluids for steering and gears
- Factories, where they move water, petrol, and oil
- Food plants, where they move syrups and sauces without hurting them
- Chemical plants, where they move strong or rough fluids
| Industry | Types of Fluids Handled |
|---|---|
| Automotive | Hydraulic fluids |
| Industrial Applications | Water, petrol, lubricants |
| Food and Beverage | Syrups, sauces |
| Chemical Processing | Corrosive and abrasive substances |
If you want a pump that is quiet and lasts a long time, try a vane pump from NTGD. You can ask NTGD for help picking the best pump for your job.
Gear Pumps: Overview
How Gear Pumps Work
Gear pumps have two gears inside a case. When the pump turns on, the gears spin. Fluid gets trapped between the gear teeth and the case. The spinning gears move the fluid from the inlet to the outlet. This makes the fluid flow in a steady way. Rotary gear pumps are used for thick fluids. The simple design helps these pumps work well for many jobs.
Tip: Gear pumps work with thick fluids like oils and resins. This makes them good for hard jobs.
Key Features of Gear Pumps
Gear pumps move fluid in a steady and exact way. They are good for thick fluids and can make high pressure. The table below shows how gear pumps and vane pumps are different:
| Feature | Gear Pumps | Vane Pumps |
|---|---|---|
| Operational Mechanism | Uses two meshing gears to create a vacuum | Uses rotating vanes that slide in and out of slots |
| Flow Rate | Provides a constant flow rate | Offers smooth and consistent flow characteristics |
| Pressure Range | Operates in low to medium pressure ranges | Operates at medium pressure levels, up to 200 bar |
| Efficiency | Less efficient at higher pressures | Better control over flow rate with variable displacement |
| Applications | Used in agricultural and construction machinery | Common in automotive systems and plastic injection molding |
Gear pumps also have these benefits:
- They give exact amounts for jobs that need it.
- They keep working even if the supply is not steady.
- You can pick different materials to match your fluid.
Common Uses
Gear pumps are used in many places because they are strong and useful. Here are some ways people use them:
| Industry/Process | Application/Reason |
|---|---|
| Industrial and Hydraulic | Gives steady pressure and flow for machines, oil systems, and fuel delivery |
| Automotive | Used for engine oil, power steering, and transmission work |
| Food and Beverage Processing | Moves thick fluids like syrups, oils, and sauces in a clean way |
| Chemical and Pharmaceutical | Gives exact amounts and moves strong fluids like resins and solvents |
| Low-Flow Applications | Used for dosing, mixing small batches, and careful drug delivery |
NTGD has many gear pumps for your needs. If you need a pump for thick fluids and steady flow, NTGD can help you. Contact NTGD to find the best pump for your job!
Vane Pumps vs Gear Pumps: Comparison
When you pick between vane pumps and gear pumps, you need to see how they work in real life. You want a pump that lasts long, works well, and matches your fluid and how often you want to fix it. Let’s look at what makes them different so you can pick the best one for your job.
Durability and Wear
It is important for pumps to last many years. Gear pumps have two gears that fit together. These gears can wear out over time. When this happens, leaks can start. The pump body or side plates can also get damaged if used a lot. Shaft seals in gear pumps may break and need fixing.
Vane pumps use vanes that slide in and out of a rotor. These pumps need clean oil to work well. Dirty oil can make the vanes stick or wear out faster. Small vane pumps may not start well if the oil is dirty or if something blocks the suction.
Here is a table that shows what can go wrong with each pump:
| Pump Type | Common Failure Modes |
|---|---|
| Gear Pumps | Wear of internal friction pairs, increased leakage, damage to pump body or side plates, shaft seal damage |
| Vane Pumps | Oil contamination affecting tolerances, sticking or wear from contaminants, poor self-priming in small models |
Tip: You can make a sliding vane pump last longer by putting in a new vane cartridge.
Efficiency and Flow
A pump that works well saves energy and keeps things running. Both vane pumps and gear pumps are very efficient. They usually work in the mid to high 90s. Gear pumps give steady flow, even with thick fluids. Vane pumps give smooth flow with no pulses, which is good for gentle jobs.
- Gear pumps keep flow steady, even with thick fluids.
- Vane pumps are great for changing flow and moving fluids gently.
Sliding vane pumps are good when you need gentle and steady flow. Rotary gear pumps are best when you need to move thick fluids in exact amounts.
Pressure and Performance
Pressure tells you how strong a pump is. Gear pumps can reach higher pressures, so they are good for tough jobs. Vane pumps can handle many pressures, with some going up to 400 bar.

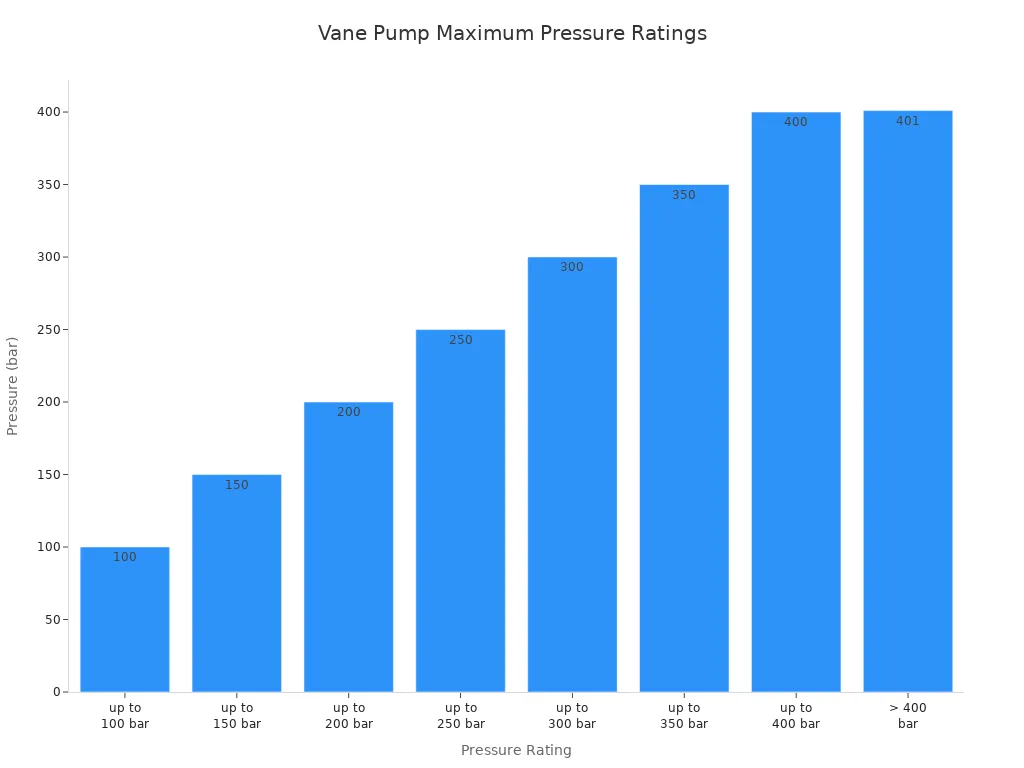

Here is a table with the highest pressures for vane pumps:
| Vane Pump Pressure Ratings | Value |
|---|---|
| Maximum Operating Pressure | > 400 bar |
| Maximum Operating Pressure | up to 100 bar |
| Maximum Operating Pressure | up to 150 bar |
| Maximum Operating Pressure | up to 200 bar |
| Maximum Operating Pressure | up to 250 bar |
| Maximum Operating Pressure | up to 300 bar |
| Maximum Operating Pressure | up to 350 bar |
| Maximum Operating Pressure | up to 400 bar |
- Triple high pressure gear pumps can reach 3000 to 5000 psi.
- Some special gear pumps go over 5000 psi.
- The best gear pumps can reach up to 7000 psi.
Note: If you need very high pressure, gear pumps are usually the better pick.
Fluid Compatibility
The type of fluid you use matters for your pump. Vane pumps work best with thin liquids like water, petrol, solvents, alcohol, and soft drinks. They do not work well with thick fluids. Gear pumps are great for thick fluids like oils, syrups, and resins.
| Pump Type | Compatible Fluids | Incompatible Fluids |
|---|---|---|
| Vane Pumps | Thin and low viscosity liquids (water, petrol, solvents, alcohol, soft drinks) | Highly viscous fluids |
| Gear Pumps | Thick and high viscosity fluids (oils, syrups, resins) | Not ideal for thin, low viscosity fluids |
If you need to move dirty or rough fluids, gear pumps do better. Their design lets them handle particles and keep the flow steady. Vane pumps do not like dirty fluids, which can cause them to wear out or change flow.
| Pump Type | Handling of Abrasive/Contaminated Fluids | Sensitivity to Contamination | Flow Consistency |
|---|---|---|---|
| Vane Pumps | Struggle due to wear on vanes and surfaces | High | Variable |
| Gear Pumps | Excel due to design for high-viscosity fluids | Low | Consistent |
Maintenance Needs
Taking care of your pump helps it last longer. Gear pumps have fewer moving parts, so you do not need to fix them as often. You might need to reseal them if they leak, but fixing worn gears can cost a lot.
Vane pumps need more checks. You should look for wear, check the fluid, clean or change filters, and watch the temperature. People who fix pumps should know how to care for them. You may need to change vanes and cam rings to keep them working well.
Here is a simple list for taking care of vane pumps:
- Check for wear, damage, or leaks.
- Make sure the fluid is clean.
- Clean or change filters.
- Watch the system temperature.
- Train people to care for the pump.
- Tighten bolts and screws.
- Check the system pressure.
- Change the hydraulic fluid often.
- Keep extra vanes and cam rings ready.
- Always use a filter to keep dirt out.
Some problems you may see are leaks, hard seals, burned pressure plates, and rotor damage. Too much heat or dirty fluid can cause these issues. If you hear strange noises or lose pressure, check your pump.
Cost Factors
How much you spend matters for long-term use. Vane pumps cost more at first, but they save money because they work well. Gear pumps are cheaper to make and cost less at the start. You may spend less fixing gear pumps because they are simple.
Here is a table that compares costs:
| Factor | Vane Pumps | Gear Pumps |
|---|---|---|
| Viscosity | Less efficient with high-viscosity fluids. | Well-suited for high-viscosity fluids. |
| Cleanliness | Requires clean fluids to prevent damage. | More tolerant of particulate matter. |
| Pressure Requirements | Operates effectively at lower to medium pressures. | Can handle higher pressures. |
| Flow Consistency | Provides smooth, pulse-free flow. | May exhibit slight pulsations at lower speeds. |
| Temperature Tolerance | Limited by material used. | Tolerates a broader temperature range. |
| Wear Resistance | Self-adjusting vanes maintain efficiency longer. | May experience wear at meshing surfaces. |
| Maintenance Needs | Requires more maintenance and vane replacement. | Lower maintenance needs due to fewer moving parts. |
| Initial Investment | Higher initial costs. | Generally more economical to manufacture. |
| Operational Costs | Higher efficiency can lead to lower operational costs. | Lower operational costs due to simpler design. |
NTGD has both vane pumps and gear pumps for your needs. You can trust NTGD to help you pick the right pump for your job.
If you want help or need to match a sliding vane pump or rotary gear pump to your job, ask NTGD. Their team will help you find the best pump for your fluid, pressure, and how you want to care for it.
Choosing the Right Pump
Assessing Application Needs
Before you pick a pump, think about your job. You should look at the fluid you need to move. Think about how much pressure you need. Also, ask how often you will use the pump. The table below shows what is important when picking between vane pumps and gear pumps:
| Criteria | Vane Pumps | Gear Pumps |
|---|---|---|
| Fluid Properties | Versatile for various fluids | Suitable for low viscosity fluids |
| Cost | Relatively inexpensive | Good investment due to long lifespan |
| Design | Simple design, easy to maintain | Compact size, variable speed operation |
| Self-Priming | Yes | Yes |
| Operational Noise Levels | Relatively quiet | Quiet |
| Applications | Food, pharmaceutical, chemical processing | Wide variety of applications |
NTGD can help you look at these things and find the best pump for you.
Matching Pump to Fluid
You need to match the pump to the fluid you want to move. Gear pumps work with many types of fluids, even if they are dirty. Vane pumps work best with clean, thick lubricants. Sliding vane pumps give steady flow, even as they get older. Gear pumps are better if your fluid has dirt in it. Always check if your fluid is thick or thin and if it is clean before you choose.
- Gear pumps work with many viscosities and dirty fluids.
- Vane pumps need clean fluids and like thick lubricants.
- Pick lubricants that meet ISO 4406 cleanliness rules.
Maintenance and Cost Considerations
You want a pump that saves you time and money. If your pump stops, it can cost more than the pump itself. For important jobs, you need a pump that is reliable. Gear pumps are simple and last a long time, but dirty fluids can wear them out faster. Vane pumps are precise and can do many jobs, but you need to check them more, especially if you use high pressure. It is easy and fast to take care of a sliding vane pump, so you do not lose much time.
Tip: For less important jobs, look at the price and how much it costs to keep the pump running. For important jobs, focus on how reliable the pump is and how easy it is to fix.
NTGD has experts who can help you pick the right pump for your budget and how much care it needs. You can trust NTGD to help you find the best pump for your work.
When you look at pumps, think about these main things:
- Vane pumps are very efficient and work well with thin or medium fluids.
- Gear pumps are good for thick fluids and do not need much fixing.
- Pick your pump based on what your job needs, how you will use it, and how much you want to spend.
| Next Steps | What You Should Do |
|---|---|
| Review specifications | Make sure the pump fits what your job needs. |
| Schedule maintenance | Plan to check the pump often and follow the rules. |
| Consult a specialist | Ask NTGD for help or more information. |
To pick the best pump, think about how it works, how to take care of it, and how much it costs.
