Comparing Two Types of Pumps
Explore the key differences between submersible and self-priming pumps.
| Features | Submersible Pumps | Self-Priming Pumps |
|---|---|---|
| Installation | Underwater, may need lifting systems | Above ground, easy to reach |
| Cost | Higher initial, lower operational | Lower initial, higher maintenance |
| Typical Use Cases | Deep water, wastewater | Where priming is needed |
| Maintenance | Harder to access for maintenance | Easy access for maintenance |
| Reliability | More prone to underwater issues | Reliable and easy to restart |
| Handling Solids | Can move solids up to 1 1/4 inches | Can move solids, but size matters |
| Material Compatibility | Uses corrosion-resistant materials | Uses cast iron or plastic |
| Efficiency | High efficiency underwater | Less efficient at high lifts |
When you pick between submersible pumps and self-priming pumps, it depends on what you need. Submersible pumps work best when they are underwater. People use them in deep water or for wastewater. Self-priming pumps stay above the ground. They are easier to fix and check. You can look at the main differences below:
| Feature | Submersible Pumps | Self-Priming Pumps |
|---|---|---|
| Installation | Underwater, may need lifting systems | Above ground, easy to reach |
| Cost | Higher initial, lower operational | Lower initial, higher maintenance |
| Typical Use Cases | Deep water, wastewater | Where priming is needed |
Key Takeaways
- Submersible pumps work best when they are underwater. They are good for deep wells and for moving dirty water. These pumps are quiet and use energy well. But, it is harder to fix them because they are deep down.
- Self-priming pumps stay above the ground. They start fast and do not need you to prime them by hand. These pumps are easy to fix and can handle air in the suction line. They work well for building sites and for stopping floods.
- Think about where you will put the pump and how you will fix it. Submersible pumps are harder to reach. Self-priming pumps are easier to get to.
- Both types of pumps need regular care. You should look for leaks, clean the filters, and check how well the pump works. This helps the pump last longer.
- Look at what you need, like the kind of liquid and the space you have. This will help you pick the best pump. NTGD experts can give you advice that fits your project.
Submersible Pumps Overview
How Submersible Pumps Work
Submersible pumps go right into the liquid you want to move. They push water or other fluids up to the top. You do not have to prime them because they stay underwater. The motor and pump are joined together, so power goes through waterproof cables. This setup lets you put the pump in deep wells or tanks. You can also place submersible pumps at different angles. This helps when you have tight or tricky spaces.
Here is a table that shows the main mechanical ideas behind submersible pumps:
| Mechanical Principle | Description |
|---|---|
| Centrifugal Force | The impeller spins fast and moves liquid by making pressure. |
| Differential Pressure | The pump uses pressure changes to move fluids well. |
| Direct Coupling | The motor is joined right to the pump, so it is easier to install. |
| Installation Flexibility | You can put the pump at many angles, even in deep wells. |
| Bearing Design | Special bearings help the pump run smoothly and last longer. |
Tip: You do not need to worry about air inside submersible pumps. The pump always stays underwater, so it works without extra steps.
Typical Uses
You can find submersible pumps in many places. These pumps help with problems in farming, cities, and factories. Here are some common ways people use them:
- Agriculture: Submersible pumps help with irrigation. They pull water from underground and help crops grow.
- Wastewater Management: These pumps move dirty water to treatment plants. They help keep public places clean and safe.
- Industrial Applications: Factories use submersible pumps for cooling water, stormwater, and filtration.
- Flood Control: These pumps help manage extra water during storms and stop flooding.
- Municipal Infrastructure: Submersible pumps are important in sewer systems and water treatment projects.
Submersible pumps work well in tough places. If you need to move water from deep spots or handle wastewater, these pumps are a strong choice.
Self-Priming Pumps Overview
How Self-Priming Pumps Work
Self-priming pumps are special because they do not need you to prime them by hand. These pumps have a design that lets them move both air and water. When you turn on the pump, it moves liquid around inside itself. This makes a vacuum that pulls air out of the suction pipe. Because of this, water or other fluids can come up from below without extra work.
Self-priming pumps work by moving liquid inside the pump head. This makes a vacuum and pushes air out of the suction pipe. The pump keeps doing this until liquid gets to the impeller.
Some main things help self-priming pumps work well:
- They can lift fluids from below without outside help.
- They push air out of the suction pipe by themselves.
- They save time and do not need much watching.
Self-priming pumps start fast and easy, even if the suction pipe is empty. This makes them good for many jobs.
Typical Uses
Self-priming pumps are used in many places and for many jobs. People use them when they need to move water or other fluids quickly and safely. Here are some ways they are used:
| Use Case | Description |
|---|---|
| Municipal Wastewater Management | Needed for moving sewage to treatment plants in cities, so water flows well. |
| Flood Control | Used fast in places that flood to move dirty water away. |
| Construction Dewatering | Used at building sites to drain water mixed with dirt, so workers stay safe. |
- Flood control and emergency drainage: These pumps remove water fast during floods.
- Construction dewatering: They keep building sites dry and safe for people.
Self-priming pumps are flexible and work well for many needs. If you want a pump that starts fast and can handle air in the pipe, self-priming pumps from NTGD are a good choice.
Tip: NTGD self-priming pumps give you strong and steady work for normal days and emergencies.
Do you want to pick the best pump for your job? Contact NTGD now to get help and answers made just for you.
Key Differences
When you look at submersible pumps and self-priming pumps, you notice they are different in how you put them in, take care of them, and use them. Each pump works better for certain jobs. This part explains these differences so you can pick the best pump for what you need.
Installation
Submersible pumps go under the water. You have to lower the pump into a well, tank, or pit. You connect the drop pipe and tie a safety rope. All connections must be tight so water does not leak. Never use the electrical cable to lower the pump. After lowering, you hook up the discharge line and power. You also add a check valve to stop water from going back. The last step is to test and watch the system.
Self-priming pumps stay above the ground. You put them close to the water source. This makes them easy to reach. You connect the suction and discharge pipes. Fill the pump casing with water and connect the power. You can check and fix these pumps without going into small spaces.
| Installation Phase | Submersible Pumps | Self-Priming Pumps |
|---|---|---|
| Location | Below water level | Above ground |
| Access | Needs confined space entry for maintenance | Easy access for maintenance |
| Steps | Lower into well, connect pipes, test system | Connect pipes, fill casing, test system |
| Safety | Use safety rope, avoid cable lifting | Simple setup, less risk |
Tip: NTGD helps you install both types of pumps safely and quickly.
Maintenance
You should check your pumps often to keep them working well. Submersible pumps need you to look for leaks and listen for odd sounds. Check the motor temperature and make sure the pump stays underwater. Test the float switches too. Every month, look at the impeller, seals, and gaskets. Lubricate the bearings and clean the cooling jacket. Once or twice a year, do a full check, change old parts, and test how the pump works.
Self-priming pumps also need regular checks. Look for air leaks and check the impeller. Clean the strainer and check seals and bearings. This stops water from getting inside. Both pumps need you to watch the float switch to make sure it works right.
- Daily/Weekly: Look for leaks, listen for noise, test switches.
- Monthly: Check impeller, seals, gaskets, and bearings.
- Quarterly/Semi-Annual: Test how well the pump works and check safety devices.
- Annual: Do a full check, change old parts, clean and test.
| Maintenance Challenge | Submersible Pumps | Self-Priming Pumps |
|---|---|---|
| Overheating | Can happen if pump runs dry | Not common, but can happen |
| Air Leaks | Rare, since pump is underwater | Can cause problems, check seals |
| Cleaning | Needs cleaning often to stop clogs | Clean impeller and strainer often |
| Seal and Bearing Wear | Check and change often | Check and change often |
| Float Switch Monitoring | Needed for automatic work | Needed for automatic work |
Cost

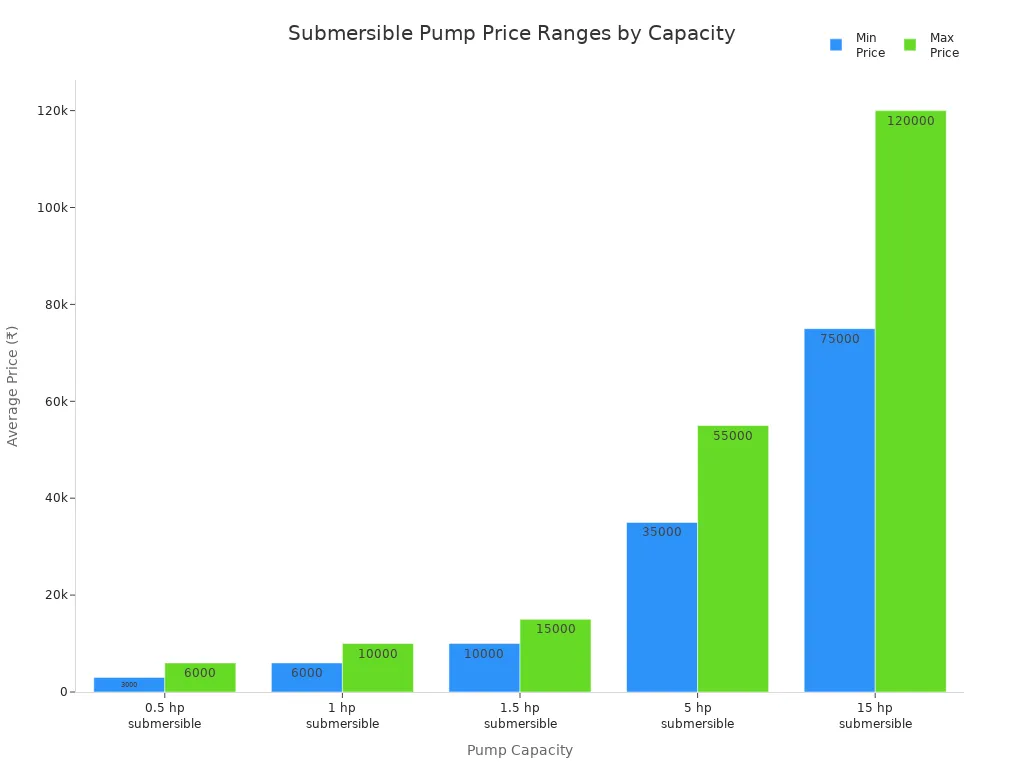

Pump prices change based on size and power. Submersible pumps can cost a little or a lot. A small submersible pump costs between ₹3,000 and ₹6,000. Big ones, like 15 hp, can cost ₹1,20,000 or more. Self-priming pumps, like the SPERONI CAM 150, cost about $917.29. Bigger ones can cost up to $1,375.92.
Over time, submersible pumps may cost more to fix because you have to go into small spaces. Self-priming pumps are easier and cheaper to fix. New technology makes self-priming pumps use less energy, so you save money later.
| Pump Type | Initial Costs | Maintenance Costs | Efficiency Factors | Long-term Costs |
|---|---|---|---|---|
| Submersible Pumps | Higher | Significant | Corrosion-resistant materials, specialized sealing systems | Higher due to ongoing maintenance |
| Self-Priming Pumps | Lower | Lower | Technological advancements, energy efficiency | Lower over time |
Reliability
You want a pump that works when you need it. Self-priming pumps are good for easy use and quick starts. They work well for taking out water and for watering plants. Submersible pumps can have more problems because they work underwater. Things like cavitation, picking the wrong pump, or tough places can make them fail. You can stop these problems by picking the right pump and keeping up with checks.
Note: NTGD pumps use smart designs to make pumps work better and break down less.
Material and Chemical Compatibility
The stuff used to make pumps matters for moving different fluids. Submersible pumps often use stainless steel, bronze, or strong plastics. These materials do not rust and work well in wet places. Self-priming pumps may use cast iron, ductile iron, or plastic. Stainless steel and bronze are best for fluids that can cause rust. Cast iron is good for normal jobs. Always match the pump material to the fluid you want to move.
| Material Type | Properties and Applications |
|---|---|
| Cast Iron | Strong and tough, but can rust in bad water. Good for normal jobs. |
| Stainless Steel (304, 316) | Does not rust, best for salty or harsh water. 316 is better for fluids with lots of chloride. |
| Bronze | Does not rust and stops stuff from growing on it. Good for sea and dirty water jobs. |
| Polymeric Materials | Light and does not rust. Best for fluids that are not too strong. |
| High-performance Polymers | Used for hard jobs needing strong resistance. Pick based on fluid type. |
| Ceramic | Very hard and does not change with chemicals. Used in pumps that wear out fast. |
Handling Solids
Sometimes you need to move water with dirt or sand. Submersible pumps can move solid pieces up to 1 1/4 inches wide. They work well for dirty water and farming, but you need filters to stop clogs. Self-priming pumps can also move solids, but big or hard pieces can block the ports or hurt the impeller. Both pumps need cleaning and the right setup to stop blockages.
- Submersible pumps: Move solids up to 1 1/4 inches, but need filters for lots of dirt.
- Self-priming: Can move solids, but size and type matter. Big or hard solids can block the pump.
| Attribute | Submersible Pumps | Self-Priming Pumps |
|---|---|---|
| Installation | Underwater, needs small space entry | Above ground, easy to reach |
| Maintenance | Costs more, needs small space entry | Costs less, easy to reach |
| Cost | Costs more at first and to fix | Costs less at first and to fix |
| Reliability | Better with new tech, but has more problems | Reliable, easy to use and restart |
| Materials | Strong, does not rust for wet places | Changes, often for above-ground use |
| Handling Solids | Can move solids, needs filters | Can move solids, but size and type matter |
If you need help picking a pump, NTGD experts can help you choose based on your job and fluid. Contact NTGD for advice and good pump solutions.
Pros and Cons
Submersible Pumps Pros & Cons
Submersible pumps have many good things about them. They work under the water, so you do not need to prime them. These pumps are very efficient because they push water up from below. They are also quiet, so they are good for places where noise is a problem. You can use submersible pumps for many jobs, like deep wells or wastewater.
But there are some problems too. Submersible pumps usually cost more at first. Since they are underwater, it is hard to reach them for repairs. If you need to fix one, you must pull it out of the water. These pumps can rust if you do not use the right materials. Dirt or trash in the water can block or hurt the pump.
| Advantages | Disadvantages |
|---|---|
| High efficiency | Higher initial cost |
| Self-priming operation | Harder to access for maintenance |
| Quiet performance | Sensitive to debris |
| Versatile for many applications | Needs corrosion-resistant materials |
Tip: NTGD makes submersible pumps with strong materials. This helps stop rust and makes repairs easier.
Self-Priming Pumps Pros & Cons
Self-priming pumps are easy to start and set up. You do not have to fill the suction pipe by hand. These pumps can move both air and water, so you save time. You put self-priming pumps above ground, so checking and fixing them is simple. Many people like that these pumps can move solids and help with floods or building sites.
But self-priming pumps have some downsides. They might need more space because of how they are built. If you need to move water from deep down, they may not work as well. Some types use more energy to move solids, so they are less efficient.
| Advantages | Disadvantages |
|---|---|
| No manual priming needed | Larger size for solids handling |
| Handles air and gases | Less efficient at high suction lifts |
| Easy installation and maintenance | May use more energy for some tasks |
| Can move solids in some situations | Higher initial investment for some |
Note: NTGD self-priming pumps are reliable and easy to service.
If you need help picking between submersible and self-priming pumps, NTGD experts can help you. Contact them today to find the best pump for your job!
Choosing the Right Pump
Selecting the right pump for your job can feel confusing, but you can make a smart choice by looking at your needs, the fluid you want to move, and your budget. You should also think about where you will install the pump and how often you need to maintain it. NTGD offers both submersible and self-priming pumps, so you can find a solution that fits your project.
When to Choose Submersible Pumps
You should pick submersible pumps when you need to move water or fluids from deep places or when the pump must work underwater. These pumps work well in wells, tanks, and pits. They are also a good choice for wastewater, flood control, and irrigation when the water table is high or the area stays wet.
Here are some key points to help you decide if submersible pumps are right for you:
- You need to pump from deep wells, underground tanks, or flooded areas.
- The fluid contains solids or debris, and you want a pump that can handle them.
- You want a quiet pump that works underwater and does not need priming.
- The installation area has limited space above ground.
- You need a pump that can run for long periods without overheating.
When you choose a submersible pump, you should check the properties of the liquid, such as how thick it is, if it has solids, or if it can cause rust. You also need to know how far and how high the pump must move the fluid. Always look at the pump curve from the manufacturer to make sure the pump will work at the level you need. If you have special needs, ask NTGD for advice or custom solutions.
Tip: Submersible pumps are best for deep water, high water tables, and places where you want the pump out of sight.
When to Choose Self-Priming Pumps
You should choose self-priming pumps when you need a pump that starts quickly and sits above the fluid. These pumps work well for jobs where the fluid level changes or where you need to move water fast, such as in construction, flood control, or irrigation.
Consider self-priming pumps if:
- You want a pump that does not need manual priming, saving you time and effort.
- You need to handle air or vapors in the suction line, which can happen when the fluid level drops.
- You want easy access for maintenance and repairs.
- You need to move water from tanks, rivers, or places with changing fluid levels.
- You want a pump that can handle frequent dry starts without damage.
Self-priming pumps are also a good choice for above-ground installations. They work well in places where you need to start and stop the pump often. These pumps can save you money on maintenance and last longer because they are easy to check and fix.
Note: NTGD self-priming pumps give you reliable performance and quick starts for many jobs, from farms to factories.
Key Factors to Consider
When you choose between submersible and self-priming pumps, look at these important factors:
- Viscosity: Thick fluids need special pumps.
- Temperature: Make sure the pump can handle the heat or cold.
- Corrosiveness: Use pumps made from the right materials for harsh fluids.
- Flow Rate: Know how much fluid you need to move.
- Total Dynamic Head: Check the height and distance the pump must lift the fluid.
- Pump Material: Pick strong, lasting materials.
- Power Source: Make sure you have the right power for your pump.
- Installation and Maintenance: Think about space and how easy it is to reach the pump.
- Budget: Balance the cost now with savings later.
Here is a table to help you match your needs to the right pump:
| Situation | Best Pump Type | Why It Works Well |
|---|---|---|
| Deep wells or submerged areas | Submersible Pumps | Works underwater, handles solids, quiet operation |
| Flood control or quick drainage | Self-Priming Pumps | Fast start, easy access, handles changing fluid levels |
| Irrigation from rivers or tanks | Self-Priming Pumps | Handles air, easy to maintain, above-ground setup |
| Wastewater with solids | Submersible Pumps | Handles debris, works in pits or tanks |
If you are not sure which pump to choose, NTGD experts can help you find the best match for your job and budget.
Picking between submersible and self-priming pumps depends on what you need. Look at the main differences:
| Feature | Self-Priming Pumps | Submersible Pumps |
|---|---|---|
| Longevity | Can last up to 20 years | Usually lasts up to 5 years |
| Maintenance | Simple, stays above ground | Must be taken out of liquid |
| Cost-Effectiveness | Saves more money | Needs replacing more often |
Think about how much water you need to move. Check how high the pump must push water. Look at the outlet size and what power you have. If you want help or a price, contact NTGD today!
