Comparing Single-Stage and Multi-Stage Pumps
Explore the key differences between pump types.
| Features | Single-Stage Pumps | Multi-Stage Pumps |
|---|---|---|
| Number of Impellers | Contains one impeller. | Contains multiple impellers. |
| Pressure Output | Low to moderate pressure. | High pressure. |
| Flow Rate | High flow at low pressure. | High pressure at lower flow rates. |
| Installation Complexity | Simple and cost-effective. | More complex and costly. |
| Maintenance Needs | Easier to maintain. | More parts mean more maintenance. |
| Cost | Generally lower initial cost. | Higher initial cost. |
| Best Applications | Ideal for water supply. | Best for high-pressure needs. |
| Energy Efficiency | Uses less power. | Higher energy use due to stages. |
| Head Range | 10–150 meters. | Can exceed 1,000 meters. |
The biggest difference between single-stage and multi-stage centrifugal pumps is how they handle pressure and flow. Single-stage centrifugal pumps are 60.1% of the world market. This is because they are simple and cost less. Multi-stage pumps work better when you need high pressure. They also give a steadier water flow. Think about what you need for your job. For example, centrifugal fire pumps for fire protection may need higher pressure or better efficiency.
Key Takeaways
- Single-stage centrifugal pumps are simple and not expensive. They work well for moving lots of water. They are best for low or medium pressure jobs.
- Multi-stage centrifugal pumps have more than one impeller. They are made for high-pressure jobs. These pumps are good for fire safety and tall building water supply.
- Picking the right pump depends on what you need. Think about how much water you must move. Also, think about the pressure you need for your work.
- Single-stage pumps are easy to set up and fix. They are a good pick for simple jobs. Multi-stage pumps need more care and skill.
- Always think about the fluid you are pumping. Single-stage pumps can handle solids better. Multi-stage pumps do not work well with fluids that have debris.
Centrifugal Pumps Overview
What Are Centrifugal Pumps
Centrifugal pumps help move water or other fluids fast. They use a spinning part called an impeller. The impeller pushes the fluid from one place to another. Many industries use centrifugal pumps for different jobs. Some jobs are simple, like moving water. Others need high pressure, like fire protection.
Here is a table showing the main types of centrifugal pumps and where you might use them:
| Type of Pump | Description | Typical Applications |
|---|---|---|
| Radial Flow | Discharges fluid at 90° to the shaft axis. | Water distribution, fire protection systems |
| Mixed Flow | Discharges fluid in a semi-axial direction, combining radial and axial action. | Chemical processing, food and beverage manufacturing |
| ANSI Pumps | Adhere to ANSI standards, used for thinner fluids like water and alcohol. | Chemical processing, municipal water systems |
| API Pumps | Designed for high temperatures and pressures, ideal for petroleum industry. | Oil refinery operations, crude oil pumping |
| Single-stage | Contains one impeller, suitable for high flow at low pressure. | General fluid transfer applications |
| Two-stage | Contains two impellers, designed for higher head applications. | Applications requiring higher pressure |
| Multi-stage | Contains several impellers, develops high pressures economically. | High-pressure applications in various industries |
You can find different pump designs. Some are close-coupled or frame-mounted. Others are vertical inline or horizontal inline. Each design helps with special needs. Some save space. Others make repairs easier.
How Centrifugal Pumps Work
When you turn on the pump, the impeller spins. It pulls fluid into the center. The spinning impeller pushes the fluid outward. This makes the fluid move faster. The fluid then goes into the volute casing. The casing slows the fluid down. It changes the speed into pressure. This lets the pump send out water or other fluids at the right flow and head.
The main parts of centrifugal pumps are:
- Impeller: Moves the fluid and makes it go faster.
- Volute casing: Slows the fluid and makes pressure for steady flow.
- Shaft, bearings, seals, and pump housing: Help the pump work well and stop leaks.
Tip: The impeller’s shape and size change how the pump works. The number of blades and the material matter too. A bigger impeller with more vanes moves more water. Strong materials are needed for tough fluids or high heat.
Centrifugal fire pumps are used in fire protection systems. They give steady, high-pressure water flow. The way these pumps work makes them a good choice for many jobs. They are picked when strong and steady performance is important.
Single-Stage Centrifugal Pump
Definition and Features
A single-stage centrifugal pump has one impeller to move fluid. Many industries use this pump because it is simple and works well. The single-stage design makes it easy to put in and take care of. You can use this pump when you need steady water flow at low or medium pressure.
There are many kinds of single-stage centrifugal pumps. These pumps come in many sizes and are made from different materials. You can look at the table below for some examples. Each pump model has its own case material, impeller size, suction size, and discharge size. These things help you pick the right pump for your job.

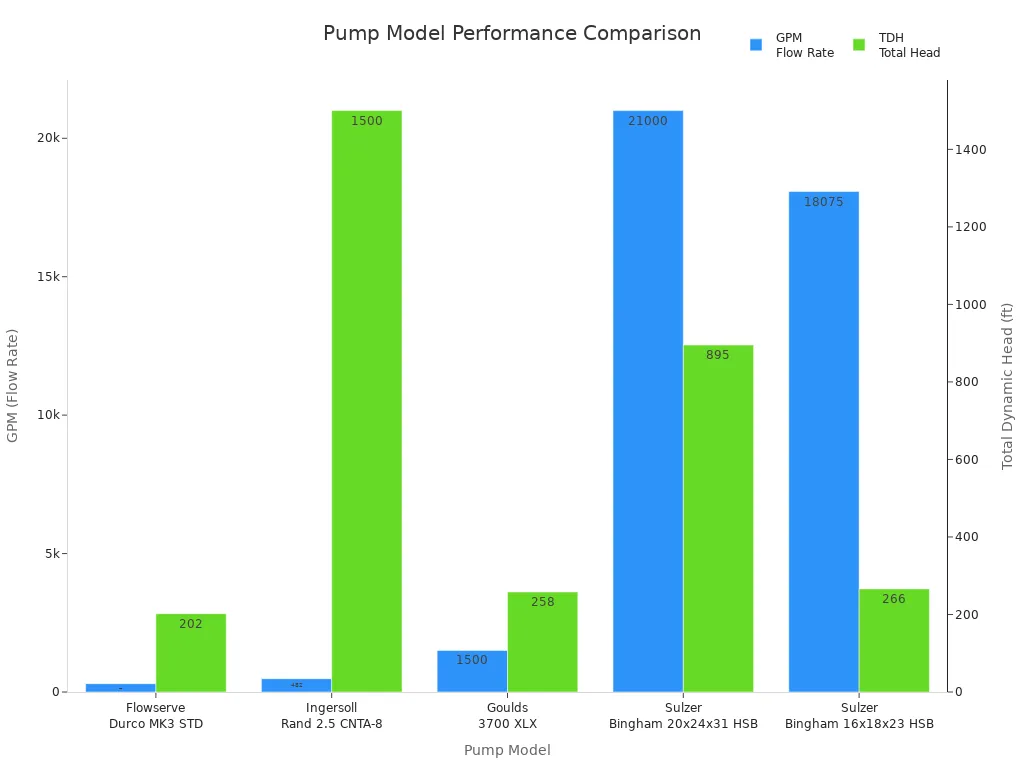

| Pump Model | Case Material | Impeller Size | Suction Size | Discharge Size | Applications | RPM | GPM | TDH |
|---|---|---|---|---|---|---|---|---|
| Flowserve Durco MK3 STD | Ductile Iron | 7.5″ | 3″ 150# FF | 2″ 150# FF | Water Transfer, Oil Transfer, Water Wastewater | 3600 | 301 | 202 |
| Ingersoll Rand 2.5 CNTA-8 | Steel | N/A | 4″ ASA RF | 2.5″ ASA RF | N/A | 3600 | 482 | 1500 |
| Goulds 3700 XLX | Steel | N/A | 10″ 300# RF | 8″ 300# RF | Dewatering, Pipeline Filling, Oil Transfer | 1800 | 1500 | 258 |
| CPC C12x14x20 HDR | Steel | N/A | 14″ 300# RF | 12″ 300# RF | Dewatering | N/A | N/A | N/A |
| Sulzer Bingham 20x24x31 HSB | Steel | 26-13/16″ | 24” RF | 20” RF | Water Pipeline | 1800 | 21000 | 895 |
| Sulzer Bingham 16x18x23 HSB | Steel | 19.66″ | 18″ RF | 16″ RF | Water Wastewater, Water Pipeline, Flood Control | 1800 | 18075 | 266 |
Tip: Pick a single-stage pump with the right discharge size and impeller. This helps you get the best water flow and head for your job.
Performance and Efficiency
A single-stage centrifugal pump gives high flow rates with medium pressure. This makes it good for moving lots of water or other fluids over short distances. The simple design means you do not have to fix it often.
Single-stage pumps are great when you want steady flow and good performance. You can see how different centrifugal pumps work in the chart below. The chart shows gallons per minute (GPM) and total dynamic head (TDH) for several single-stage centrifugal pumps.
Single-stage pumps usually cost less than multi-stage pumps. They are also easier to fix and faster to set up. If you need a pump for fire protection, water transfer, or wastewater, a single-stage centrifugal pump can help. NTGD has single-stage centrifugal pumps that give strong discharge and steady water flow for many uses.
Multi-Stage Centrifugal Pumps
Definition and Features
A multi-stage centrifugal pump has two or more impellers. These impellers move water through different chambers. Each chamber makes the pressure higher before water leaves the pump. You pick this pump when you need high pressure for your job. Multi-stage pumps work well when one single-stage pump is not enough.
You can look at the table below to see the main features:
| Feature | Specification |
|---|---|
| Suction Lift | Up to 25′ (8 m) |
| Impeller Materials | Low-lead brass or thermoplastic |
| Flow Rate | Up to 3,400 GPH (12,870 LPH) |
| Pressure Rating | Up to 90 PSI (620.5 kPa) |
| Stages | 2 or 3 stages |
| Motor Power | 3/4, 1, 1-1/2, 2 or 3 HP |
| RPM | 3450 RPM |
| Phase | 1 or 3 Ph |
| Warranty | 1 year limited warranty |
Multi-stage pumps use strong materials for their impellers. You can find pumps with different motor powers and phases. This helps you pick the right pump for your needs. NTGD makes multi-stage centrifugal pumps that follow tough industry rules.
Performance and Efficiency
Multi-stage centrifugal pumps are great for giving high pressure. They keep water flowing steady, even to tall places. These pumps use many stages to build up pressure. This makes them good for fire protection, boiler feed, or sending water far away.
Here is a table that compares single-stage and multi-stage pumps:
| Feature | Single-stage centrifugal pump | Multi-stage centrifugal pump |
|---|---|---|
| Pressure Head | Low to moderate | High |
| Flow Rate | High flow at low pressure | High pressure at lower flow rates |
| Head Range | 10–150 meters | Can exceed 1,000 meters |
Pick a multi-stage pump if you need high head or must move water far. These pumps give strong discharge and work well in tough jobs. If you need a pump for high-pressure work, a multi-stage centrifugal pump from NTGD is a good choice.
Tip: Always check how many stages and the pressure rating before you buy a pump. This helps you get the right water flow and discharge for your system.
Key Differences
Pressure and Flow
Single-stage and multi-stage centrifugal pumps are different in how they handle pressure and flow. Single-stage pumps are best when you need a lot of water but not much pressure. These pumps work well for moving water or for fire protection. In these jobs, steady water flow is more important than high pressure. Multi-stage pumps have more than one impeller. This helps them make higher pressure. You use these pumps when you need to send water up tall buildings or far away.
Here is a table that shows how pressure and impeller design are not the same:
| Type of Pump | Pressure Output | Impeller Design | Efficiency |
|---|---|---|---|
| Single-Stage Centrifugal | Low to moderate pressure | One impeller | Moderate |
| Multi-Stage Centrifugal | High pressure | Multiple impellers | Higher due to staged increase |
Single-stage pumps can move a lot of water and work well for medium or low head jobs. Multi-stage pumps can reach very high head, even hundreds or thousands of meters. But they keep the water flow smaller and steadier. If you want high flow and low pressure, pick a single-stage pump. If you need high pressure, a multi-stage pump is better.
- Single-stage pumps are good for jobs that need lots of water at lower pressure.
- Multi-stage pumps are made to give high head with steady flow.
- Single-stage pumps work well for medium and low head jobs.
- Multi-stage pumps can reach very high head but have a smaller, steady flow.
Tip: Always pick your pump based on how much pressure and water flow you need. NTGD has pumps for both high flow and high pressure, so you can find the right one for your job.
Energy Efficiency
How much energy a pump uses depends on its type and how many stages it has. Single-stage pumps are simple and use less power for jobs that do not need much pressure. Multi-stage centrifugal pumps use more power because each stage adds more pressure. You need more energy to run these pumps, especially for high discharge.
- More stages in a centrifugal pump mean higher pressure and head.
- More stages also mean you need more power, so energy use goes up.
- Picking the right number of stages helps you save energy and get the pressure you need.
You should always think about how much energy your pump will use. If you pick a pump with too many stages, you waste energy. NTGD helps you choose pumps that use the right amount of energy and still do the job, so you save money.
Complexity and Cost
Single-stage pumps are simple. They are easy to put in and take care of. These pumps cost less to buy and fix because they have fewer parts. Multi-stage pumps are more complicated. They take more time and skill to install and repair. The extra impellers and chambers make them cost more.
Here is a table that shows how cost and complexity are different:
| Pump Type | Initial Purchase Cost | Maintenance Cost |
|---|---|---|
| Single-stage | Lower due to simple design and fewer components | Lower due to fewer parts and easier servicing |
| Multi-stage | Higher due to complex design and additional components | Higher due to complexity and need for specialized skills |
You can also see differences in how hard they are to install and use:
| Pump Type | Installation Complexity | Operation Complexity | Applications |
|---|---|---|---|
| Single-Stage Pump | Simple and cost-effective | Easy to maintain | Fire pump jockey systems, moderate pressure applications |
| Multi-Stage Pump | More complex and costly | Higher maintenance requirements | High-pressure applications, delivering higher heads |
If you want a pump that is easy to use and costs less, pick a single-stage pump. If you need high pressure and do not mind paying more or doing more work, a multi-stage pump is a good choice. NTGD has pumps for every job, so you can find one that fits your needs and budget.
Note: Always think about how hard a pump is to install, fix, and how much it costs before you choose. NTGD experts can help you pick the best pump for your job.
Pros and Cons
Single-Stage Centrifugal Pump
Single-stage centrifugal pumps have many good points for moving water. NTGD makes pumps that work well and use new technology. These pumps are small, so they fit in tight spots. They can move a lot of water and run for a long time. The special design helps them work smoothly and use less energy. You can put them in and take care of them without much trouble. This saves you time and money. Using less energy also helps the planet.
- High performance and modern technology
- Small size fits many places
- Moves lots of water fast
- Good for running all the time
- Works smoothly and saves energy
- Easy to set up and fix
- Uses less power for lower bills
But there are some downsides. Single-stage pumps do not work well if you need very high pressure or to move water up high. The table below shows the main problems:
| Disadvantage | Description |
|---|---|
| Limited Head | Not good for jobs needing high head |
| Efficiency | Not as efficient at high head as multi-stage pumps |
Multi-Stage Centrifugal Pumps
Multi-stage centrifugal pumps give strong pressure and steady water flow. NTGD makes these pumps for tough jobs like fire safety or sending water up tall buildings. They work well, save space, and can be used in many ways. These pumps last a long time because they are made strong. They do not need much fixing and run quietly. The table below shows the main good points:
| Benefit | Description |
|---|---|
| High Efficiency | Saves energy and lowers your bills |
| Compact Design | Fits in small spaces |
| Versatility | Good for many jobs, like fire and farming |
| Robust Build | Made strong to last a long time |
| Low Maintenance | Only needs simple checks to keep working |
| Smooth Operation | Runs quietly and well |
| Energy Savings | Uses less power for lower costs |
| Scalability | Can handle more work as you need it |
| Safety and Reliability | Has safety parts for steady use |
| Wide Industrial Use | Used in farming, food, and medicine factories |
There are some problems with multi-stage pumps too. These can be things like bubbles in the water, worn parts, or the shaft not lining up right. Air pockets and old parts can make the pump work less well. Checking your pump often helps stop most problems and keeps it working.
Tip: Always pick the pump that fits your job best. NTGD can help you choose between single-stage and multi-stage centrifugal pumps for the best results.
Best Applications
When to Use Single-Stage
Pick single-stage pumps if you want something easy to use. They are good when you need lots of water but not much pressure. These pumps are simple to set up and fix. Many companies use single-stage centrifugal pumps. They move big amounts of water or other fluids without stopping. NTGD has single-stage pumps for these jobs.
Here is a table that shows where single-stage pumps work best and why:
| Industry | Common Uses |
|---|---|
| Oil and Gas | Boosting crude oil, moving finished products, putting water into reservoirs. |
| Food and Beverage | Moving drinks like milk, beer, and juice while keeping things clean. |
| Water and Wastewater Treatment | Moving lots of water through cleaning steps. |
| Pharmaceutical | Moving raw stuff, mixing things, filling capsules or bottles. |
| Agriculture | Watering crops, giving water to animals, moving fertilizers. |
Single-stage pumps do better than multi-stage pumps in these cases:
| Application | Advantages |
|---|---|
| Firefighting systems | Great for lots of water, not too much pressure |
| HVAC systems | Simple build, easy to fix |
| Water distribution | Costs less to own |
| Irrigation | Good for lots of water, not high pressure |
| Municipal pumping stations | Works well for moving lots of water |
Tip: If you want a pump that is strong and easy to care for, single-stage centrifugal pumps from NTGD are a good pick.
When to Use Multi-Stage
Choose multi-stage pumps if you need high pressure or must move water up high. These pumps have more impellers to make more pressure. They are great for hard jobs. NTGD makes multi-stage centrifugal pumps for jobs that need steady water and strong power.
You will see multi-stage pumps used for:
- Boiler feed water
- Firefighting
- High-pressure cleaning
- Irrigation
- Reverse osmosis
- Snowmaking
- Water circulation
- Water supply boosting
Multi-stage centrifugal pumps also help with:
- Water supply and pressurization systems
- Factory work and industrial jobs
- Cooling and heating systems
- Farming and watering crops
- Fire fighting systems
Here is a table that shows how multi-stage pumps help with high pressure in businesses:
| Type of Pump | Description |
|---|---|
| Vertical Multistage Pump | Made for high pressure and saves floor space; stages go up and down to fit small areas. |
| Horizontal Multistage Pump | Fits in wide spaces; parts are easy to reach and fix. |
| Applications | Used in HVAC, hotels, and offices to keep water pressure steady. |
Note: If you need strong water pressure and steady flow, multi-stage centrifugal pumps from NTGD give you what you need.
Making the Right Choice
Assessing Your Needs
You want to pick the right choice for your job. Start by looking at what you need from your pump. Think about how much water you need to move and how high you need to send it. If you need high pressure, multi-stage centrifugal pumps work best. If you need high water flow at lower pressure, single-stage pumps are a better fit.
Here is a table to help you compare important factors:
| Factor | Single-Stage Pumps | Multi-Stage Pumps |
|---|---|---|
| Efficiency | May not be as efficient depending on impeller type. | Generally more efficient due to tighter clearances. |
| Space | Takes more space when multiple pumps are used. | Smaller footprint, can be vertical. |
| Pressure Flexibility | Allows for manual pressure control with isolation. | Requires VFD for pressure adjustments. |
| Handling of Solids | Can handle solids. | Does not handle solids. |
| Maintenance | Easier to fix with fewer parts. | More parts mean potentially more maintenance. |
| Cost | Costs can vary; generally larger motors needed. | Higher initial cost but lower running costs. |
You should also think about the type of fluid you want to move. If your water has solids or debris, single-stage pumps handle these better. Multi-stage pumps do not work well with solids. Maintenance is easier with single-stage pumps because they have fewer parts. Multi-stage pumps need more care and may cost more at first, but they can save money over time with lower running costs.
Multi-stage centrifugal pumps use several impellers to boost pressure while keeping the flow rate steady. This makes them perfect for jobs that need strong discharge, like fire protection or sending water up tall buildings. Single-stage pumps are simpler and work well when you do not need high pressure.
Tip: Always check your pressure and flow needs before you choose a pump. This helps you get the best performance and saves you money.
Selection Tips
You want to make the right choice for your system. Use these tips to help you pick the best pump for your needs:
- Fluid Characteristics: Look at the viscosity, density, temperature, chemical makeup, and if there are solids in your water.
- Flow Rate: Find out the lowest and highest flow rates you need. Decide if you want steady or changing water flow.
- Pressure Requirements: Check the suction head, discharge head, and total dynamic head (TDH) for your job.
- Environmental Conditions: Think about the temperature, humidity, if the air is corrosive, and how much space you have.
- Efficiency and Energy Consumption: Pick pumps with high efficiency. You can use variable frequency drives (VFDs) for better control.
- Reliability and Maintenance: Choose pumps that need little care, have spare parts you can get easily, and come from a trusted supplier.
Note: NTGD is a trusted expert in centrifugal pumps. You can ask NTGD for advice when you need help picking single-stage or multi-stage pumps. Their team can help you match the right pump to your job and make sure you get strong discharge and steady water flow.
Common mistakes can make your pump work less well. Avoid picking a pump without checking your pressure and flow needs. Do not forget to look at the type of fluid and if there are solids. Make sure you have enough space for your pump. Always ask pump experts or suppliers like NTGD if you are not sure. They can help you avoid problems and get the best performance.
🛠️ Quick Guide:
- Need high water flow at low pressure? Choose single-stage.
- Need high pressure for fire or sending water up high? Choose multi-stage.
- Moving water with solids? Use single-stage.
- Want lower running costs and high efficiency? Multi-stage may be better.
You can make the right choice by looking at your needs, checking all factors, and talking to experts. NTGD can help you find the best centrifugal pumps for your job.
You can now see how single-stage and multi-stage centrifugal pumps are different. The table below shows the main points:
| Feature | Single-Stage Pump | Multi-Stage Pump |
|---|---|---|
| Impellers | One | Multiple |
| Pressure | Low to moderate | High |
| Best Use | Water supply, HVAC | Boiler feed, fire suppression |
Use a single-stage pump for easy jobs that need lots of water. Pick a multi-stage pump if you need strong pressure. Always choose a pump that fits your job. If your project is tricky, NTGD experts can help you pick the right pump.
