Comparing Efficiency and Maintenance Aspects
Explore the differences in efficiency and maintenance.
| Features | Horizontal centrifugal pumps | Vertical centrifugal pumps |
|---|---|---|
| Efficiency Range | 55% to 85% efficiency. | 60% to 80% efficiency. |
| Flow Rate Efficiency | High flow rate efficiency. | Moderate flow rate efficiency. |
| Energy Consumption | Lower energy consumption. | Higher energy at low flow. |
| Maintenance Accessibility | Easy ground-level access. | Harder, often below ground. |
| Maintenance Frequency | Simple daily and monthly tasks. | Requires strict routine checks. |
| Common Issues | Leaks, vibration, overheating. | Wear, cavitation, bearing failures. |
| Servicing Complexity | Low complexity, on-site tasks. | High complexity, may need tools. |
| Downtime | Usually short downtime. | Can be longer due to access. |
When you look at horizontal pumps and vertical pumps, you see they work differently. They are also not the same when it comes to maintenance. Horizontal pumps are easier to reach for repairs. This can help save time and money on work. Vertical pumps have shafts that go up and down. This can cause more shaking and needs more parts to keep them steady. To sum up, horizontal pumps are easier to fix. Vertical pumps are better for some other jobs.
Key Takeaways
- Horizontal pumps are simple to take care of. Their parts are close to the ground. This makes it easy to check and fix them fast.
- Vertical pumps work best with high pressure. They fit well in small spaces. They can move tough fluids without problems.
- How well pumps work depends on their type. Horizontal pumps usually work between 55% and 85%. Vertical pumps work between 60% and 80%.
- Pick the pump that fits your needs. Think about space, pressure, and how easy it is to fix. This helps the pump work its best.
- It is important to do regular maintenance. Make a strict plan for both types of pumps. This stops problems and helps pumps last longer.
Efficiency Comparison
Horizontal Pumps Efficiency

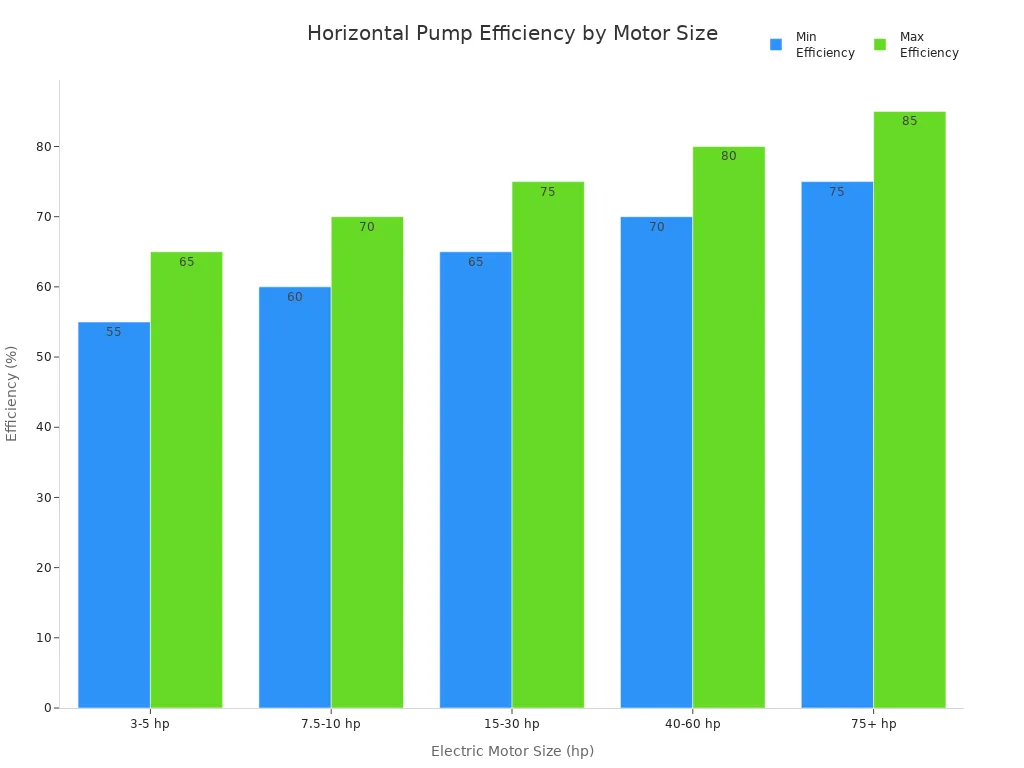

Horizontal pumps often work well in big jobs. They are good at moving lots of water or fluids at a steady speed. In many city water systems, horizontal centrifugal pumps can be very efficient. Their efficiency is between 55% and 85%. The size of the electric motor changes how efficient they are. For example, a pump with a 75 horsepower motor or bigger can reach up to 85% efficiency. This is why many factories and city water systems use them.
Many things can change how well horizontal centrifugal pumps work. The kind of fluid you move matters. The speed you run the centrifugal pump at is important too. The pump’s design also affects how it works. If you use the wrong speed, the pump can wear out faster. It will not be as efficient. How you set up your pipes is important. A good system helps the pump move fluids easily and saves energy.
Vertical Centrifugal Pumps Efficiency
Vertical centrifugal pumps are best when you need high pressure. They are also good if you do not have much space. You see these pumps in fire fighting, chemical plants, and HVAC systems. In city water systems, vertical centrifugal pumps can be efficient. They usually have efficiency between 60% and 80%. These pumps are great for high-pressure jobs. But they may use more energy when the flow is low.
You might pick vertical centrifugal pumps for tight spaces. They are also good for moving dangerous fluids safely. They work well in oil and gas jobs where high pressure is needed. But for most water treatment, horizontal pumps use less energy. They also move more water for the same amount of power.
Efficiency Table
Here is a simple table to compare horizontal and vertical centrifugal pumps:
| Pump Type | Typical Efficiency (%) | Flow Rate Efficiency | Energy Consumption | Best Use Case |
|---|---|---|---|---|
| Horizontal centrifugal pumps | 55 – 85 | High | Lower | Municipal water supply, industrial operations |
| Vertical centrifugal pumps | 60 – 80 | Moderate | Higher at low flow | High-pressure, space-limited applications |
Tip: If you need to move a lot of water at a steady speed, horizontal centrifugal pumps are often the best. They use less energy. If you need high pressure or have little space, vertical centrifugal pumps may be better.
Factors Impacting Efficiency
- Type of Material: Fluids with solid bits can lower efficiency and wear out the pump.
- Operating Speed: The right speed keeps pumps efficient and helps them last longer.
- Pump Design: The shape and what the pump is made of matter for how well it works.
- System Configuration: The size and layout of pipes can help or hurt how the pump works.
Maintenance Comparison
Horizontal Centrifugal Pumps Maintenance
Horizontal centrifugal pumps are simple to take care of. The main parts are at ground level. You can see the motor, bearings, and seals easily. This helps you check, clean, and fix them fast. You do not need big machines to lift parts. You can look for leaks and listen for strange sounds. You can also feel if the pump shakes.
Here is a usual maintenance plan for horizontal centrifugal pumps:
- Daily:
- Look for leaks and clean dirt.
- Listen for odd sounds and check shaking.
- Feel if bearings are hot.
- Monthly:
- Add oil and clean oil bulbs.
- Check guards and grease bearings.
- Quarterly:
- Look for damage from shaking.
- Grease bearings and change oil.
- Check suction and discharge.
- Annually:
- Test how well the pump works.
- Look for rust and check seals.
- Check how much power is used.
Some problems with horizontal centrifugal pumps are low flow, shaking, getting too hot, noise, and leaks. If water flow is low, the filter may be blocked or the impeller is broken. If the pump shakes, it may not be lined up or the bearings are worn. If it gets too hot, check the oil or lower the work. You can fix these problems quickly because the pump is easy to reach.
Tip: The horizontal design lets you get to all parts fast. This helps you fix things quickly and keep the pump working well.
Vertical Pumps Maintenance
Vertical centrifugal pumps need a different way to care for them. These pumps are used where space is small or high pressure is needed. Many vertical pumps are below ground or in deep pits. This makes them hard to reach. You may need special tools or machines to work on them.
To keep vertical centrifugal pumps working well, follow a strict plan:
- Check often for leaks, rust, and shaking.
- Test flow and pressure often.
- Oil bearings as the maker says.
- Clean the pump and motor to keep out dirt.
- Check valves.
- Look at wires and connections for damage.
- Write down all work done.
- Get experts to help when needed.
Problems with vertical centrifugal pumps include wear, cavitation, rust, and bearing failures. The impeller can break if dirt gets inside. Vertical pumps use many bushings and bearings, so watch these parts closely. If you hear loud sounds or feel strong shaking, check if parts are lined up right.
Note: Taking care of vertical centrifugal pumps can take more time. You may need to stop work longer and use special tools to reach the pump.
Maintenance Table
Here is a simple table to compare maintenance for horizontal and vertical centrifugal pumps:
| Parameter | Horizontal Centrifugal Pumps | Vertical Centrifugal Pumps |
|---|---|---|
| Accessibility | Easy, ground-level access | Harder, often needs lifting equipment |
| Maintenance Frequency | Simple daily, monthly, quarterly, annual tasks | Needs strict routine, often more frequent checks |
| Common Issues | Leaks, vibration, overheating, noise, leakage | Wear, cavitation, corrosion, bearing failures |
| Downtime | Usually short | Can be longer due to access challenges |
| Servicing Complexity | Low, most tasks done on site | High, may need special tools or professionals |
| Record Keeping | Standard logs | Detailed records recommended |
🛠️ Quick Comparison: Horizontal centrifugal pumps are easier to care for. Vertical centrifugal pumps need more planning and special tools.
Choosing the Right Pump
Key Factors
When you pick between horizontal and vertical pumps, you should look at a few main things. Each pump type is good for different jobs. You want your system to work its best, so think about these points:
| Factor | Horizontal Pumps | Vertical Pumps |
|---|---|---|
| Space Availability | Need more floor space | Good for small spaces |
| Pressure vs. Flow | Best for moving lots of water | Great for high-pressure jobs |
| Maintenance Requirements | Easier to take care of | May need more work but last longer |
| Application Type | Depends on what the job needs | Depends on what the job needs |
You also have to think about how to set up the pump. Horizontal pumps use more floor space and can be harder to install. Vertical pumps fit in small spots and are often easier to set up. Price is important too. Horizontal pumps usually cost less at first. Vertical pumps might cost more, but they can save power when you need high pressure.
💡 Tip: If you do not have much space or need high pressure, vertical pumps could be better. If you want easy care and a lower starting price, horizontal pumps are a good pick.
Application Scenarios
You find these pumps in many places. Here are some examples to help you choose:
- Fire water systems use horizontal pumps a lot. These pumps are strong and do not shake much, so they work well in emergencies.
- In factories that move lots of water, horizontal pumps are easy to fix. You can get to parts like bearings and seals without much trouble.
- If you work in a tall building or a place with little floor space, vertical pumps are a better fit. They handle high pressure and do not need much room.
- Chemical plants and HVAC systems often use vertical pumps. These pumps work well in small spaces and can move tough fluids.
You should always pick a pump that fits your space, pressure, and flow needs. Think about how easy it is to fix the pump and how long you can stop work. The right pump helps your system work well and keeps costs down.
You have learned that both horizontal and vertical pumps are useful. Horizontal pumps are easier to fix and move more water. Vertical pumps fit in small spaces and can handle high pressure. The table below shows the main differences:
| Factor | Horizontal Pump | Vertical Pump |
|---|---|---|
| Space Needs | More | Less |
| Maintenance | Easier | More complex |
| Flow Rate | Higher | Lower |
When picking a pump, remember these things:
- Find out what kind of fluid you have.
- Look at how much flow and pressure your system needs.
- Think about how much it costs if the pump stops and if you need anything special.
How much you spend over time depends on your choice and how you use the pump. Choose the pump that fits your job best to get good results.
