Gear Pumps vs. Piston Pumps: A Deep Performance Comparison

Comparing Gear Pumps and Piston Pumps

Explore the key differences between gear pumps and piston pumps.

When you compare gear pumps and piston pumps, you find that the best choice depends on what you need for your project. Gear Pumps take over 45% of the global market because they offer simple design and cost savings. Engineers often pick piston pumps when high pressure and efficiency matter most. You should look at pressure, flow rate, budget, and the type of fluid you use. NTGD recommends matching your pump to your application’s demands for the best results.

Key Takeaways

• Gear pumps are great for steady flow and low-pressure jobs. They are simple, cost-effective, and easy to maintain.
• Piston pumps excel in high-pressure situations. They offer precise control and can adjust flow rates, making them ideal for tough tasks.
• Consider the type of fluid you will use. Gear pumps handle thick fluids well, while piston pumps work best with cleaner, less viscous fluids.
• Think about your budget. Gear pumps are cheaper upfront, but piston pumps may save you money in the long run with their efficiency in demanding applications.
• Always match your pump choice to your project’s needs. Assess pressure, flow rate, and fluid type for the best results.

Gear Pumps

How Gear Pumps Work

Gear pumps have a simple design that works well. They move fluid by trapping it between the teeth of two gears. The gears fit together and turn. As they turn, they make small spaces that catch the fluid. The fluid moves from the inlet to the outlet. This gives a steady flow, even if the pressure changes. Dynamic pumps work differently because they use fluid speed. A gear pump always gives the same amount of fluid. That is why many hydraulic systems use gear pumps. You can trust a hydraulic gear pump to keep things running. It is helpful when you need a steady flow.

Tip: Gear pumps give a steady flow. This is important for jobs like glue work and when you need to measure out fluids.

Gear Pump Applications

Gear pumps are used in many fields because they are flexible. They can move many kinds of fluids, even thick or sticky ones. Here is a table that shows where you might see a hydraulic gear pump:

Gear pumps are often used for glue jobs. They are good when you need to measure out thick fluids. This makes them great for these tasks.

Gear Pump Pros & Cons

When you look at gear pumps and other pumps, you see some good things and some not so good things. Here is a quick list:

A hydraulic gear pump is known for being reliable and easy to care for. You can use it for glue jobs and systems that measure out fluids. Its many uses make it a top pick for NTGD customers who want a pump they can trust.

Piston Pump

How Piston Pump Works

A piston pump has pistons that move inside cylinders. The pistons go back and forth. This action pulls fluid in and pushes it out. That is how the pump makes pressure. Some hydraulic piston pumps let you change flow and pressure. You do this by moving the swash plate. If you make the swash plate angle bigger, the piston moves more. The pump then moves more fluid. If you make the angle smaller, the piston moves less. This means the pump uses less power. This feature helps when you need different flow rates.

Tip: A hydraulic piston pump is good for jobs that need control. You can change the swash plate to get the flow you want.

• Piston pumps can have fixed or variable displacement.
• Variable displacement pumps change flow and pressure with the swash plate.
• This helps you deal with changing hydraulic needs.

Piston Pump Applications

Piston pumps are used in many industries. They are good for high pressure or when you need exact amounts. Here are some ways people use them:

• Pressure washing and blasting
• Bonding and chemical dosing
• Potting and paint spraying
• Lubrication and marking roads
• Sanitary fluid jobs

A hydraulic piston pump can handle over 6000 psi. You can use it with hydraulic fluids in mines. It also works with thick fluids in car steering. Robotic arms use them too. Aerospace systems use these pumps for careful movement.

Piston Pump Pros & Cons

You should look at the good and bad points before picking a piston pump. The table below shows the main things to know:

You should keep your hydraulic piston pump oiled and checked. NTGD says to follow the right steps to make it last longer. With good care, you can trust a hydraulic piston pump for tough jobs.

Key Differences

When you compare gear pumps and piston pumps, you notice some big differences. These differences change how each pump works in a hydraulic system. This comparison will help you pick the right pump for your job.

Performance & Pressure

It is important to know how each pump deals with pressure. This matters a lot in hydraulic systems. Gear pumps do well for most jobs. But piston pumps are better for high-pressure work. Here is a table that shows the usual and top pressure for both:

Piston pumps can handle much more pressure than gear pumps. If you need a pump for high-pressure jobs, look at piston pumps first. Gear pumps are best when you do not need very high pressure.

You also need to think about temperature and viscosity:

• Thicker fluids can make both pumps leak inside more, but may help seal gear teeth.
• Thin fluids leak less but can slip more, especially if pressure is high.
• Hotter temperatures make fluids thinner. This can lower power use but may cause cavitation.
• Colder temperatures make fluids thicker. This makes the pump work harder.

Flow Rate & Displacement

Flow is very important in hydraulic systems. Gear pumps give a steady flow that does not change. This makes them good for jobs that need the same amount of fluid every time. Piston pumps often let you change how much fluid they move. You can adjust the flow and pressure to fit your needs.

• Fixed displacement pumps, like most gear pumps, always give the same flow. This is good for simple jobs.
• Variable displacement pumps, like many piston pumps, let you change flow and pressure. This saves energy and gives you more control.
• Piston pumps use pistons that move back and forth. They can be radial or axial. Many let you change the output by moving the stroke or angle.

Tip: If you need a pump that can change how much fluid it moves, pick a piston pump with variable displacement.

Cost & Maintenance

Cost and care are important when picking a pump. Here is a table that shows the starting cost and care needs:

Gear pumps cost less at first. They are simple and easy to set up. Piston pumps cost more, but they work better for hard jobs.

How often you need to care for the pump is also different:

Gear pumps need care less often and break less. This is good if you want less downtime. Piston pumps need more care, but they can do harder jobs.

Application Suitability

You should pick the pump that fits your job. Here is a table that shows where each pump works best:

Gear pumps are great for low-pressure jobs and thick fluids. You see them in food, drink, and chemical plants. Piston pumps are best for high-pressure jobs, like big machines and presses.

Here are the main good and bad points for each:

• Gear pumps:
  • Save money
  • Good for steady flow
  • Best for low-pressure and thick fluids
• Piston pumps:
  • Handle high pressure
  • Can change flow
  • Good for heavy and fast jobs

Note: NTGD says you should check your system’s pressure, flow, and how much you need it to work before you choose. This guide helps you pick the best pump for your project.

Choosing the Right Pump

Picking the right pump can seem hard at first. You want a pump that fits your needs and works with your fluids. It should also fit your budget. This part will help you learn what to look for when picking a pump. You might need a gear pump or a piston pump. NTGD is a trusted company. They sell both types and can help you find the right one.

Factors to Consider

When you pick a pump, think about some key things:

• Pressure Needs: Think about how much pressure your system needs. Gear pumps are good for low or medium pressure. Piston pumps are better for high pressure.
• Flow Rate: Decide if you want a steady flow or if you want to change it. Gear pumps give a steady flow. This is good for glue machines. Piston pumps let you change the flow. This helps if you need more control.
• Fluid Type and Viscosity: The kind of fluid you use is important. Gear pumps can move thick or sticky fluids. Piston pumps need fluids that are not too thick or thin. Using the wrong fluid can hurt the pump or make it work less well.

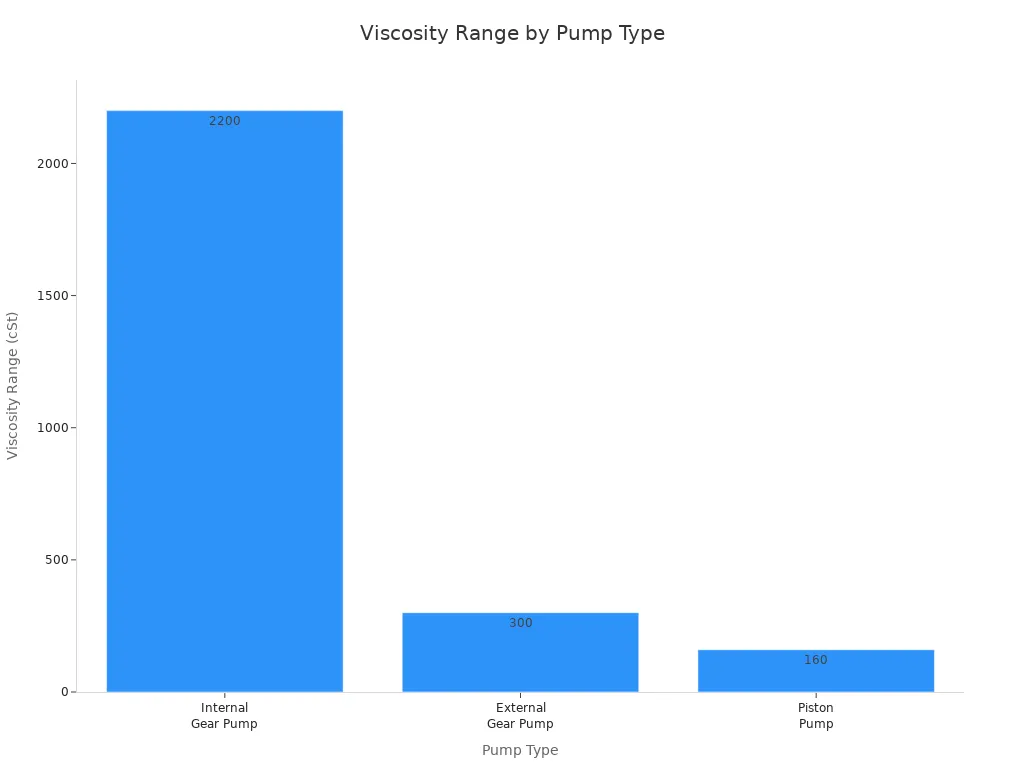

Here is a table that shows how viscosity and pressure affect your choice:

Note: Gear pumps can handle many kinds of fluids. Piston pumps need fluids with the right thickness. If your glue machine uses thick glue, a gear pump is usually best.

• Contamination Levels: If your fluid has dirt, you need a strong pump. Gear pumps can handle some dirt. Piston pumps need clean fluids so they do not break.
• Cost and Maintenance: Gear pumps cost less and are easy to fix. Piston pumps cost more but give you more control and higher pressure. Think about how often you want to fix your pump and how much time you can stop work.
• Application Requirements: Some jobs, like glue machines or presses, need special pumps. Make sure your pump fits the job.

When to Use a Gear Pump

Pick a gear pump if you want something simple and cheap. Gear pumps work well in many systems. They are great when you need a steady flow. Here are some times to use a gear pump:

• Hydraulic systems in tractors, forklifts, and excavators
• Car lubrication and glue machines
• Food and chemical jobs
• Metering and dosing jobs that need steady flow
• Moving acids, solvents, alcohols, and pastes

Gear pumps are small and light. This makes them good for cars and planes where space is tight. If your glue machine moves thick glue, a gear pump gives you steady flow. NTGD has gear pumps for many fluids. They are easy to take care of.

Tip: Use a gear pump for your glue machine if you want it simple, cheap, and reliable.

When to Use a Piston Pump

Piston pumps are best for high pressure or when you need control. Use a piston pump in these cases:

• Construction machines like bulldozers and loaders
• Big presses and molding machines
• Mobile systems that need lots of power in small spaces
• Planes and defense systems that need to be exact

Piston pumps give lots of power and work at many pressures. They last a long time if you keep them oiled. If you need careful control, like in a press or robot arm, a piston pump is best.

Note: Piston pumps need oil and clean fluids. They cannot run dry. Always follow care steps to keep your pump working.

NTGD has piston pumps for tough jobs. You can trust NTGD for good advice and strong pumps when you pick a pump for your system.

When you pick a pump, match it to your pressure, flow, fluid, and budget. Gear pumps are best for steady flow and thick fluids, like glue machines. Piston pumps are best for high pressure and jobs that need control. NTGD can help you pick the best pump. They have lots of good pumps and know how to help.

You see clear differences between gear pumps and piston pumps. The table below helps you compare their key features:

When you choose a pump, think about your pressure needs, flow rate, and budget. NTGD recommends you match the pump to your job for the best results. If you need high pressure and control, pick a piston pump. For steady flow and easy care, a gear pump works well.
