Comparing Two Types of Diaphragm Pumps
Explore the key differences between diaphragm pump types.
| Features | Mechanical Diaphragm Pump | Hydraulic Diaphragm Pump |
|---|---|---|
| Actuation Method | Uses cam or crankshaft mechanism. | Actuated by hydraulic pressure. |
| Fluid Handling | Handles high-viscosity fluids and sludges. | Designed for high flow rates. |
| Pressure Capability | Not suitable for high-pressure tasks. | Suitable for high-pressure applications. |
| Maintenance Needs | Fewer parts, easier maintenance. | More parts, requires more upkeep. |
| Cost | Lower initial investment. | Higher initial cost due to complexity. |
| Accuracy | Moderate precision in flow. | High precision and reliability. |
| Applications | Used in municipal and industrial settings. | Common in oil and gas industries. |
| Energy Efficiency | More energy-efficient. | Less focus on energy efficiency. |
The biggest difference between a Mechanical Diaphragm Pump and a hydraulic diaphragm pump is how each pump moves the diaphragm. You need to know this difference to pick the right pump for your work. Each type has its own good points and problems:
- Mechanical diaphragm pumps use a direct motor drive. This helps lower contamination risks because they do not use barrier fluids.
- Hydraulic diaphragm pumps use hydraulic fluid to move the diaphragm. This can sometimes cause leaks and contamination, especially with dangerous or corrosive materials.
You should look at these pumps by how they work, how well they perform, how simple they are to take care of, their price, and if they match your needs.
Key Takeaways
- Mechanical diaphragm pumps use a motor to work. This lowers the chance of contamination. They are good for moving liquids in simple jobs.
- Hydraulic diaphragm pumps use hydraulic fluid to work. This lets them handle high pressure and give exact amounts. They are great for hard jobs in places like oil and gas.
- Think about what you need the pump to do. Mechanical pumps are good with thick liquids. Hydraulic pumps are best when you need high pressure.
- Taking care of the pump is important. Mechanical diaphragm pumps need less care because they have fewer parts. Hydraulic pumps need more care because they are more complex.
- Look at the costs before you choose. Mechanical diaphragm pumps cost less at first. Hydraulic pumps work better for high-pressure jobs.
Mechanical Diaphragm Pump vs Hydraulic Diaphragm Pumps: Key Differences
When you look at mechanical and hydraulic diaphragm pumps, you notice they work in different ways. These differences help you pick the right pump for your job. You might need to move water, chemicals, or thick slurries.
Actuation Method Comparison
The biggest difference is how each pump moves the diaphragm. Knowing this helps you understand what each pump can do.
| Pump Type | Actuation Method |
|---|---|
| Mechanical Diaphragm Pumps | Cam mechanism or crankshaft |
| Hydraulic Diaphragm Pumps | Actuated by hydraulic pressure |
A mechanical diaphragm pump uses a cam or crankshaft. This moves the diaphragm directly. The plunger connects straight to the diaphragm. The design is simple and has fewer parts. These pumps are easy to use and take care of.
A hydraulic diaphragm pump uses hydraulic oil to move the diaphragm. The plunger does not touch the diaphragm. Hydraulic pressure pushes the diaphragm instead. These pumps have more parts, like a hydraulic chamber and oil system. This design lets the pump handle higher pressures.
Here are more differences in their structure:
| Component | Mechanical Diaphragm Pump | Hydraulic Diaphragm Pump |
|---|---|---|
| Diaphragm Actuation | Directly connected to plunger mechanism | Actuated by hydraulic oil |
| Plunger Interaction | Plunger drives diaphragm movement | Plunger does not contact diaphragm |
| Hydraulic System | No hydraulic oil system | Hydraulic oil system with infusion chambers |
Performance and Flow
Performance is another way these pumps are different. You should check flow rates, pressure, and if the pump meets your needs.
- Mechanical diaphragm pumps can move a few liters per hour or thousands. They work well with thick liquids, sludges, and slurries.
- Hydraulic diaphragm pumps move hundreds or thousands of liters per hour. They handle high pressure and keep flow steady, even in tough jobs.
Hydraulic diaphragm pumps are very accurate and reliable. They are great for jobs that need exact dosing, like in medicine or chemical plants. Mechanical diaphragm pumps are less precise and not as consistent. They work better for jobs where accuracy is not as important.
| Pump Type | Accuracy | Consistency | Pressure Handling |
|---|---|---|---|
| Hydraulic Diaphragm Pumps | High precision | Enhanced reliability | Suitable for high-pressure applications |
| Mechanical Diaphragm Pumps | Moderate precision | Less consistent | Not suitable for high-pressure tasks |
Diaphragm pumps keep getting better. New materials and smart designs help them last longer and work better. These pumps are important in high-tech industries, like energy, aerospace, and medicine. They help control fluids and gases, even in tough conditions. As industries want safer and better systems, diaphragm metering pumps keep improving.
Here is a quick table to show the main differences:
| Feature | Mechanical Diaphragm Pumps | Hydraulic Diaphragm Pumps |
|---|---|---|
| Working Principle | Uses a simpler flow path for fluid movement | Utilizes hydraulic fluid to move diaphragms |
| Drive Systems | Electric, gas, diesel, air, and hydraulic | Primarily uses hydraulic fluid for operation |
| Applications | Municipal and industrial fluid handling | High flow rates and pressures in oil and gas industries |
| Fluid Handling Capability | Can handle high-viscosity fluids, sludges, and slurries | Designed to manage high pressures and flow rates |
Tip: If you need a pump for high-pressure or very accurate jobs, try a hydraulic diaphragm pump. For simple liquid transfer, a mechanical diaphragm pump may be best.

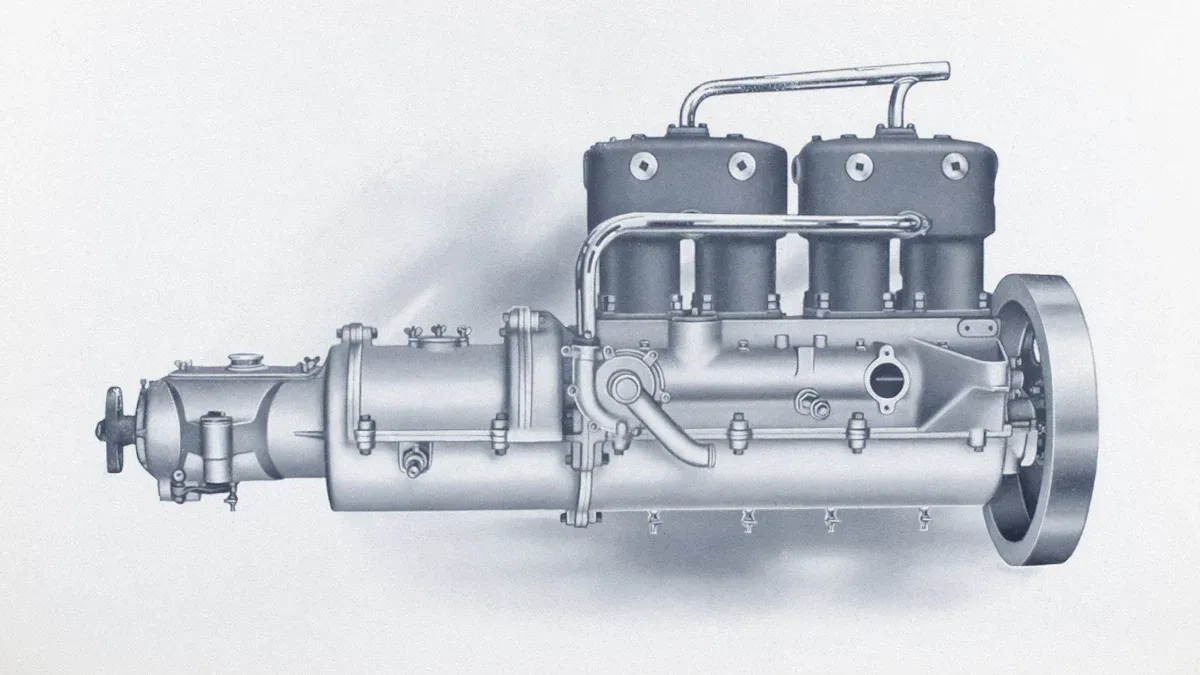

How Mechanical Diaphragm Pumps Operate
Mechanically Actuated Diaphragm Metering Pumps
A mechanical diaphragm pump moves liquid in a simple way. The pump has a motor that gives power to a transmission. This power goes to a drive shaft. The drive shaft turns and moves a connecting rod-crank. The crank is attached to a piston. When the piston moves, it pushes and pulls the diaphragm. This makes suction and discharge. The liquid moves through the pump because of this action.
Here is a table that lists the main parts and what they do:
| Component | Description |
|---|---|
| Transmission | Sends energy from the motor to the pump. |
| Rotational Drive Shaft | Changes engine power into back-and-forth motion. |
| Connecting Rod-Crank | Links the shaft to the piston and helps change the motion. |
| Piston | Moves inside the cylinder and connects to the diaphragm. |
| Diaphragm | Expands and collapses to move the liquid and keep it separate from the drive. |
| Suction Valve | Lets liquid enter the chamber. |
| Delivery Valve | Lets liquid leave the chamber and stops backflow. |
These pumps are known for not leaking. There are no moving seals that touch the liquid. This helps stop leaks. Many pumps use strong materials like PTFE or stainless steel. This means they can handle tough or dangerous fluids. You can change the flow rate and pressure. This gives you control over how much liquid moves. These pumps are very accurate, with about ±1% accuracy. They are good for jobs that need careful dosing.
Note: Mechanically actuated diaphragm metering pumps do not need much care. They have fewer moving parts, so they last longer and wear out less.
Typical Applications for Mechanical Diaphragm Pumps
Mechanical diaphragm pumps are used in many industries. They are good for jobs that need safe and accurate fluid handling. Here are some common uses:
| Industry | Typical Applications |
|---|---|
| Pool and Spa Industry | Chemical dosing, water removal, construction support |
| Manufacturing | Handling polymers, dosing inks and paints, waste liquid diversion |
| Resource Industries | Mining slurry, oil and gas transfer, wastewater removal |
| Hospitality, Marine, Recreational | Waste transfer from portable toilets, RVs, and boats |
You might use these pumps for chemical dosing in pools. They also move slurries in mining. They are used in making medicine where safe dosing is important. These pumps help stop leaks and keep your work safe.
If you want a pump that is easy to care for, accurate, and safe for many liquids, NTGD mechanical diaphragm pumps are a good choice. Want help picking the right pump? Contact NTGD and let their experts help you find the best one.
How Hydraulic Diaphragm Pumps Work
Hydraulically Actuated Diaphragm Metering Pumps
Hydraulically actuated diaphragm metering pumps use a hydraulic pump to move the diaphragm. This design lets you control the flow very well. The pump uses a piston or plunger to push on one side of the diaphragm. The diaphragm bends and pulls liquid into the pump’s inlet. When the diaphragm moves back, it pushes the liquid out through the outlet valve. This action keeps repeating, so the flow stays steady and reliable.
Here are the main steps for how these pumps work:
- Suction Stroke: The diaphragm moves back. This makes a vacuum and opens the inlet valve. Fluid goes into the pump chamber. The outlet valve stays closed.
- Compression Stroke: The diaphragm moves forward. Pressure goes up, the inlet valve closes, and the outlet valve opens. Fluid leaves the pump.
- Continuous Operation: The cycle keeps going. One-way check valves keep the flow steady and stop leaks.
Hydraulically actuated diaphragm metering pumps have some important parts:
- Hydraulically balanced diaphragm lasts longer and costs less to fix
- Hydraulic management system keeps the pump working well
- Internal hydraulic bypass valve protects the pump from problems
- Epoxy coating helps stop rust and damage
- 4-bolt tie-bar valve assembly lets you fix the pump without moving pipes
Tip: These pumps are good for high-pressure jobs and accurate dosing. The hydraulic system helps stop leaks and keeps your work safe.
Common Uses for Hydraulic Diaphragm Pumps
Hydraulic diaphragm pumps are used in many industries. They can handle hard jobs and work well for a long time. Here are some common uses:
- Wastewater Treatment: Pumps sewage, thick sludge, and stormwater.
- Food and Beverage: Moves food waste for biofuel and pumps things like milk and sauces.
- Pool and Spa: Gives exact chemical doses and removes debris.
- Manufacturing: Doses inks, paints, and resins, and handles waste liquids.
- Resource Industries: Moves fluids and handles waste in mining and oil and gas.
Hydraulic diaphragm pumps give you the power and accuracy you need for tough jobs. If you want a pump that works with high pressure and keeps your work safe, NTGD hydraulic diaphragm pumps are a good choice.
Want to make your system better? Contact NTGD today and let our experts help you pick the best diaphragm pumps for your needs.
Diaphragm Pumps: Performance and Reliability
Flow Rate and Pressure Capabilities
When you compare diaphragm pumps, you need to look at how much liquid they can move and the pressure they can handle. Hydraulic diaphragm pumps stand out for their high-pressure abilities. You can see this in the table below:
| Type | Maximum Pressure (psi) | Maximum Pressure (bar) |
|---|---|---|
| Hydraulic Diaphragm Pump | 3000 | 210 |
Some hydraulic diaphragm metering pumps, like the M800, can reach up to 800 bar, though with a lower flow rate. Others, such as the M900, offer 6 m³/h at 500 bar. The M500 model provides a higher flow rate of 19 m³/h at 350 bar. This makes hydraulic pumps a top choice for jobs that need high pressure, such as handling corrosive chemicals or precise dosing in pharmaceutical plants.
Mechanical diaphragm pump models usually work at lower pressures. They suit tasks where you do not need extreme force but still want steady flow. A mechanically actuated pump works well for moving slurries or thick fluids in municipal or industrial settings.
Tip: If your job needs high pressure or exact dosing, you should consider hydraulic diaphragm metering pumps from NTGD.
Lifespan and Maintenance Needs
You want your diaphragm pumps to last a long time and work with little trouble. Both types can serve you well if you take care of them. Here are some facts to help you compare:
- Diaphragms in pumps should be replaced after 300-500 hours of use.
- Valves and seals need replacement after 1000 hours of use.
- High-quality diaphragm metering pumps can last 30 years or more with proper maintenance.
Hydraulic diaphragm pumps often have more parts, so you may spend more time on upkeep. Mechanical diaphragm pumps have a simpler design, which means fewer things can go wrong. Both types help prevent leaks, which is important when you work with dangerous or expensive liquids.
NTGD offers diaphragm pumps that give you long service life and easy maintenance. You can trust NTGD pumps to keep your system safe and reliable, whether you work in pharmaceuticals, water treatment, or chemical processing.
Ready to boost your system’s performance? Reach out to NTGD for expert advice on choosing the best diaphragm pump for your needs.
Cost Comparison of Diaphragm Pumps
Initial Investment
When you look at diaphragm pumps, the starting price is different. Mechanical diaphragm pumps usually cost less to buy. They have a simple design and do not need many extra parts. Hydraulic diaphragm pumps cost more at first. This is because they use advanced hydraulic systems and extra safety features. If you need to move liquids under high pressure or work with dangerous chemicals, you might need to spend more on hydraulic pumps.
| Pump Type | Typical Initial Cost | Complexity of Setup |
|---|---|---|
| Mechanical Diaphragm Pumps | Lower | Simple |
| Hydraulic Diaphragm Pumps | Higher | More complex |
Think about what your job needs before you pick a pump. If you only need to move simple liquids, mechanical diaphragm pumps from NTGD can help you save money. If you work with high pressure or dangerous fluids, hydraulic diaphragm pumps from NTGD give you more protection from leaks.
Operating and Maintenance Costs
The cost to run and fix pumps is important over time. Diaphragm pumps use energy and need regular care. Sometimes, they stop working and need repairs. These costs can add up fast. You might spend up to 70% of your total costs on repairs and downtime. Energy use is about 40% of the total cost. Maintenance is around 25%.
Here are some things to remember:
- You need to replace the diaphragm every 1-2 years, especially if you use the pump a lot.
- You should clean or change valves and seats every 12-24 months. This depends on what liquid you use and how often you use the pump.
- Over 15-20 years, the starting price is only about 10% of what you will spend. Most of your money goes to keeping the pump working and fixing leaks.
If you want to save money, pick diaphragm pumps that are easy to fix and have fewer parts. NTGD pumps help stop leaks and lower downtime. You get pumps that work well and save you money for many years.
Want help picking the best pump for your money and needs? Contact NTGD today and let their experts help you choose the right diaphragm pumps for your job.

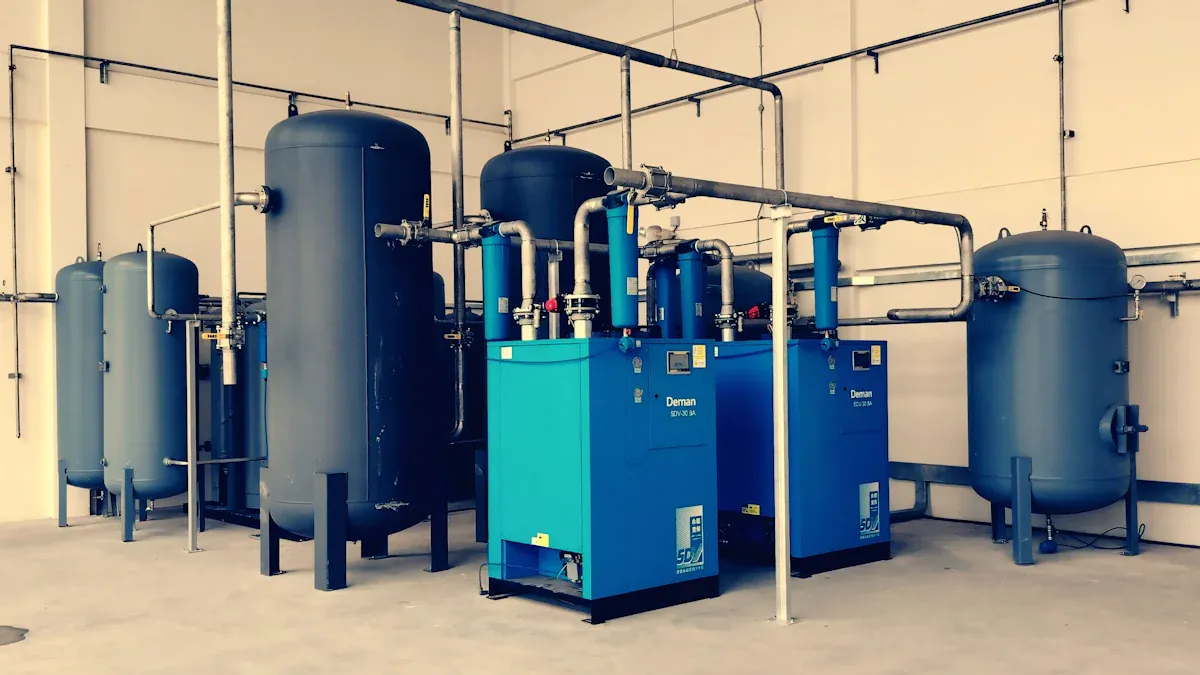

Choosing the Right Diaphragm Pump
Application Suitability
You need to match the pump to your job. Each type works best in certain situations. If you need high pressure or very precise dosing, a hydraulic diaphragm pump is the right choice. These pumps handle tough jobs in chemical plants, oil and gas, and water treatment. They keep flow steady and work well with dangerous or thick fluids.
A mechanical diaphragm pump fits jobs that need safe, leak-free operation but not high pressure. You can use it for chemical dosing in pools, moving slurries in mining, or handling waste in factories. It works well with thick or dirty liquids and needs less care.
Here is a quick guide to help you:
| Scenario | Best Pump Type | Why It Works Well |
|---|---|---|
| High-pressure dosing | Hydraulic diaphragm pump | Handles high pressure and precise flow |
| Simple liquid transfer | Mechanical diaphragm pump | Easy to use and maintain |
| Handling corrosive chemicals | Hydraulic diaphragm pump | Keeps leaks low and protects workers |
| Moving thick slurries | Mechanical diaphragm pump | Handles solids and thick fluids easily |
Tip: NTGD offers both types, so you can find the right fit for your needs.
Selection Checklist
You want to choose the best pump for your job. Use this checklist to help you decide:
- Check if the pump works within your temperature limits.
- Look for dry-running ability if you expect the pump to run without liquid sometimes.
- Think about how easy it is to move and install the pump.
- Listen for noise and check vibration if you work in a quiet place.
- Review how often you need to do maintenance.
- Set your budget and think about long-term costs.
- Pick a trusted brand like NTGD and check for good support and warranty.
You can also follow these steps:
- Decide what fluid you will pump. Think about how thick or corrosive it is.
- Set the flow rate you need. Make sure the pump can handle it.
- Check your installation. Look at head pressure and suction lift.
Note: When you use this checklist, you make sure your system runs safely and smoothly.
You can find the main differences between mechanical and hydraulic diaphragm pumps in this table:
| Feature | Mechanical Diaphragm Pumps | Hydraulic Diaphragm Pumps |
|---|---|---|
| Operational Mechanism | Simpler flow path | Uses hydraulic fluid |
| Applications | Municipal, industrial | Oil, gas, dangerous chemicals |
| Fluid Handling Capability | High-viscosity, sludges | High flow rates, high pressures |
| Energy Efficiency | Energy-saving | Less focus on efficiency |
Mechanical pumps are good for low-pressure jobs. They work well with sensitive liquids. You can use them for sodium hydroxide. Hydraulic pumps are better for high-pressure jobs. They are good for moving dangerous chemicals.
To choose the right pump, do these things:
- Check if the pump can handle your needs.
- See what pressure you need.
- Think about the liquid you want to move.
- Decide how fast you need the liquid delivered.
- Ask NTGD for help and advice.
